Home >> Volvo >> 1984 >> 240 L4-2127cc 2.1L SOHC B21A (Can) >> Repair and Diagnosis >> Diagrams >> Components >> Relays

Relays

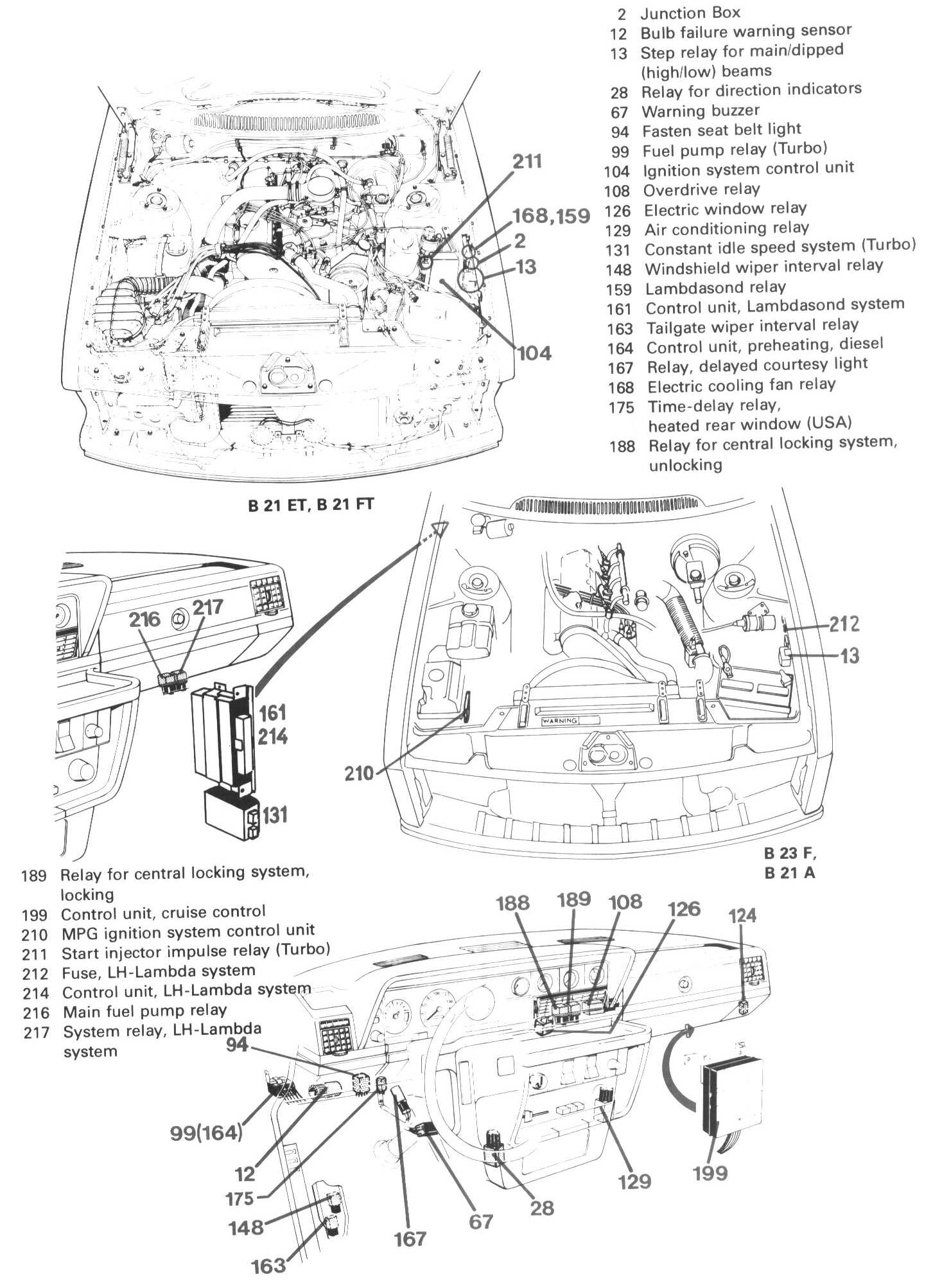

1 Of 2:

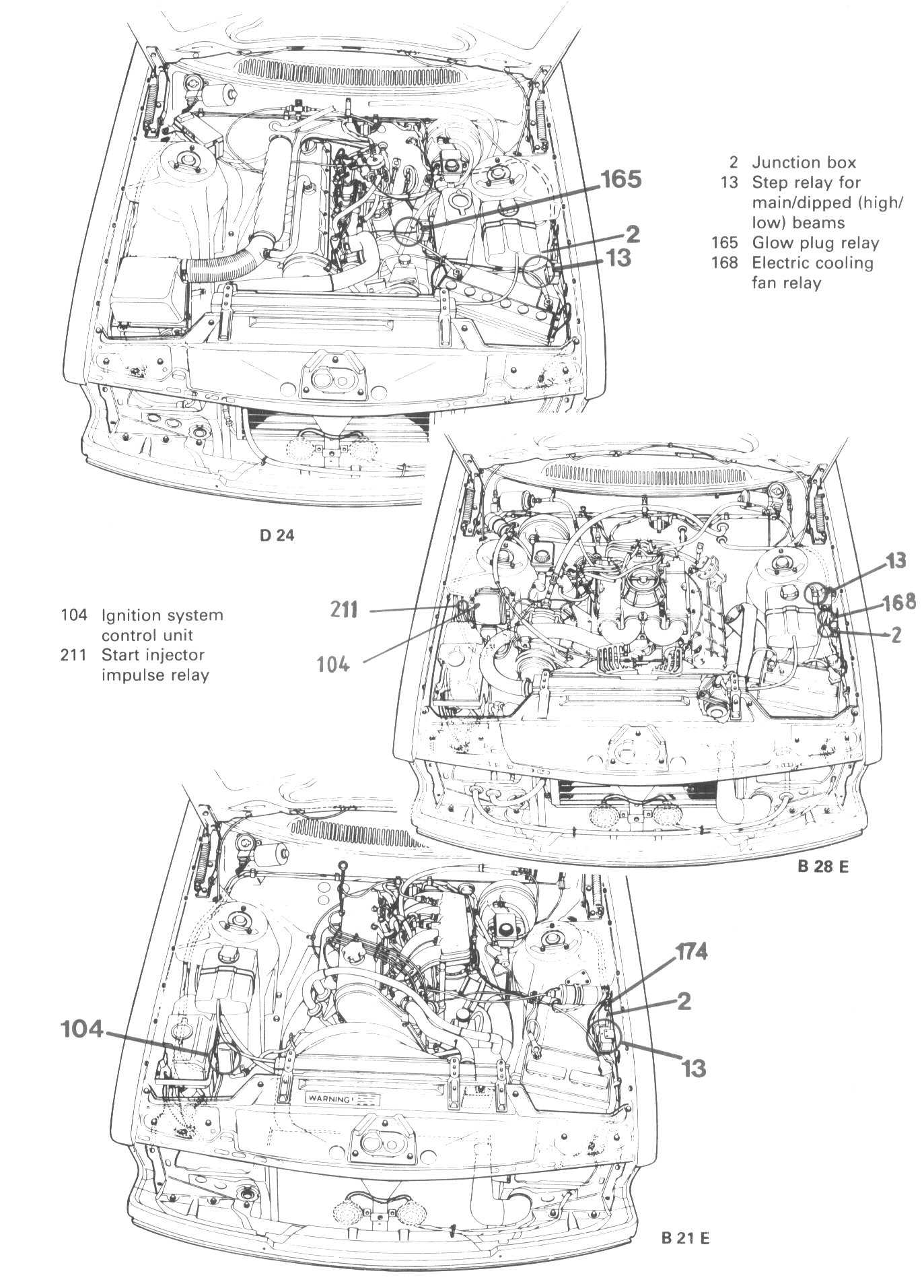

2 Of 2:
