Cruise Control - Installation
84volvo02Subject: Product
INSTALLATION CARS
OF CRUISE CONTR0L Group
M46
27
TRANSMISSION
Date: No. 101
JUNE, 1984
THIS BULLETIN APPLIES TO THE U.S. AND CANADIAN MARKETS
Late model year 1984's equipped with M46 transmission now have the shift indicator system as standard equipment.
A new base kit (P/N 1333962-7) for the cruise control will be offered.
This kit is applicable to 240, 260 series (except B21A) from 1980 on, and will supercede base kit P/N 1128862-8)
The new base kit may not include the updated instructions. For your convenience when installing this kit, use the instructions below:
(see illustration on back)
^ Connect red (R) cable (1) with the fuse to the plus side of the brake lamp contact.
^ Connect brown (B) cable (2) to the clutch contact with a scotch-lock (3).
^ Connect red (R) cable (4) between the clutch contact and the minus side of the brake lamp contact.
NOTE! The black (SB) cable (5) is disconnected from the clutch contact.

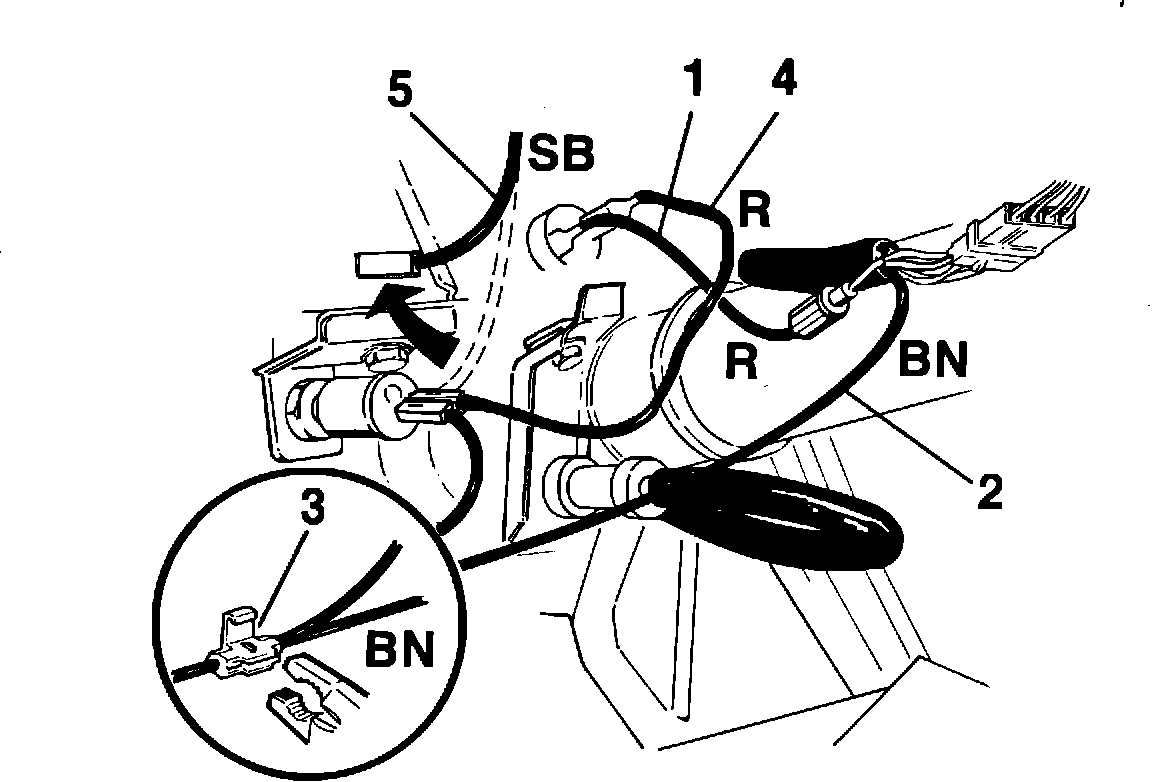

WIRING DIAGRAM
FOR INSTALLATION OF CRUISE CONTROL M46 TRANSMISSION
