Wheel Alignment - Specifications
84volvo03SECTION 6 GROUP 60 NO. 2
DATE June, 1984
RE: Wheel Alignment
760 GLE/TURBO
THIS BULLETINS APPLIES TO THE U.S. AND CANADIAN MARKETS, AND IS A SUPPLEMENT TO THE SPECIFICATIONS MANUAL SECTION 0 (03) 760 GLE/TURBO 1982-84 PAGE 64.
WHEEL ALIGNMENT SPECIFICATIONS

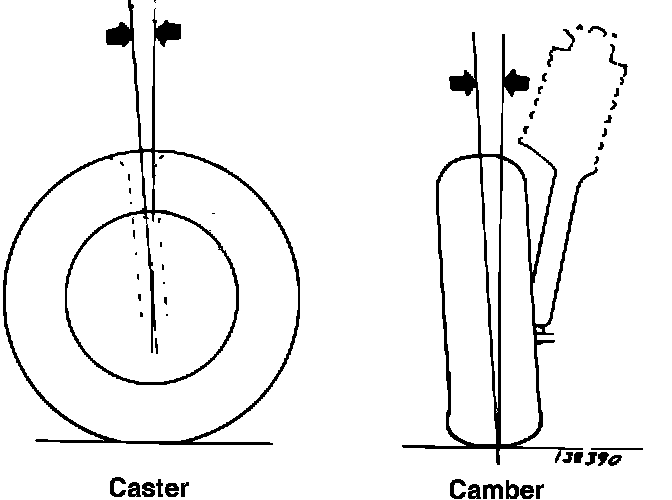

Please note that the Caster and Camber data in the Specifications service manual should be as follows:
Caster + 4.5 - 5.5°
Camber + 0.15 - 0.65°
Caster can be adjusted by fitting a new control arm strut.
The shorter strut P/N 1273191-5 reduces Caster by 0.8°.
The longer strut P/N 1273190-7 increases Caster by 0.8°.

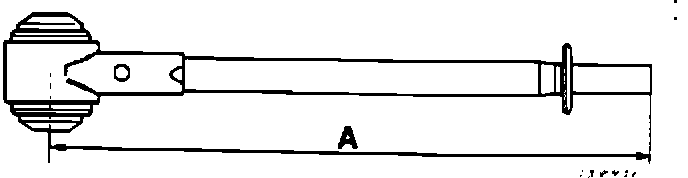

Length (A):
Standard 385.0 mm
Short (1273191) 379.5 mm
Long (1273190) 390.5 mm
