CU Heater

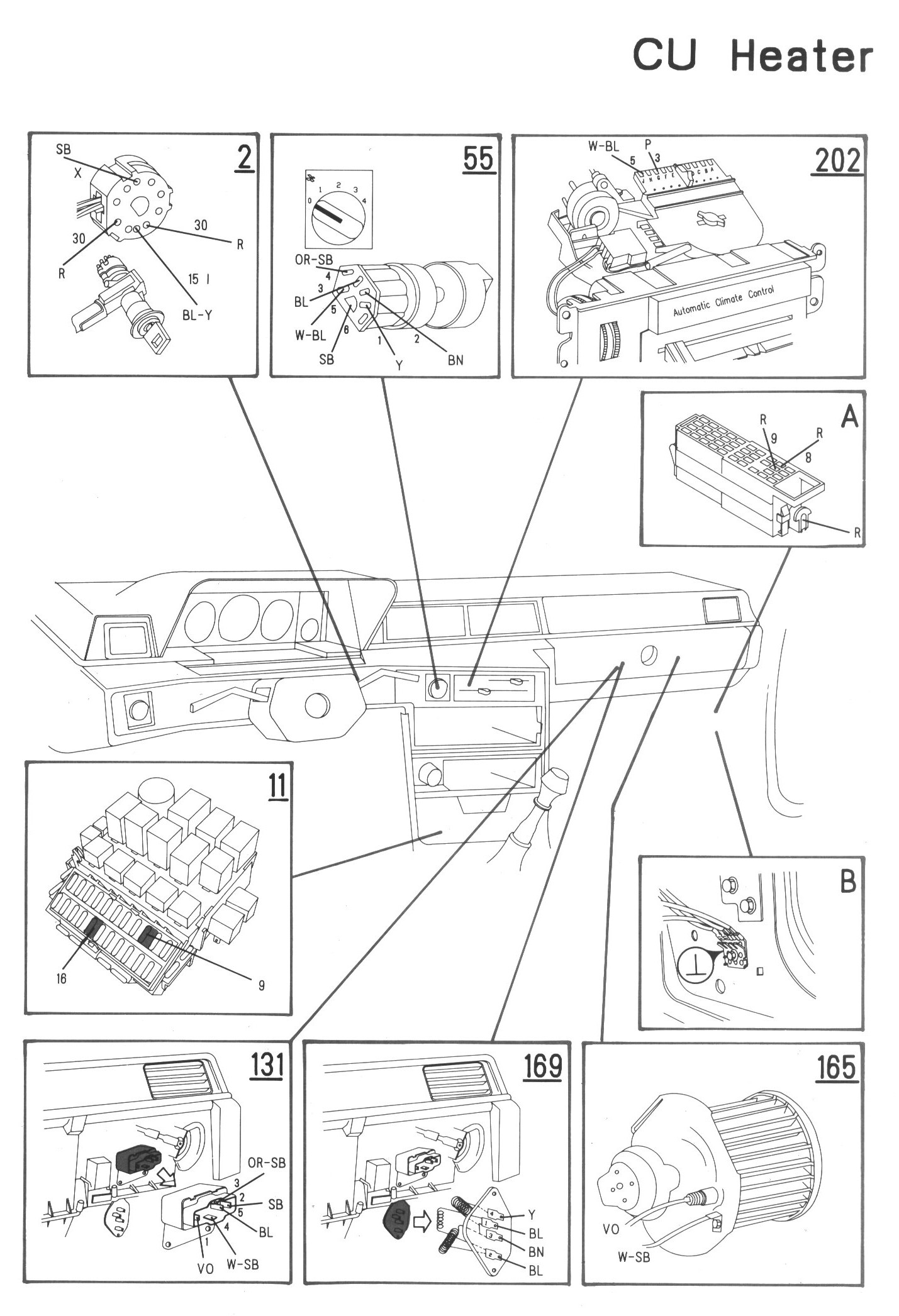

Component / Connector Views:

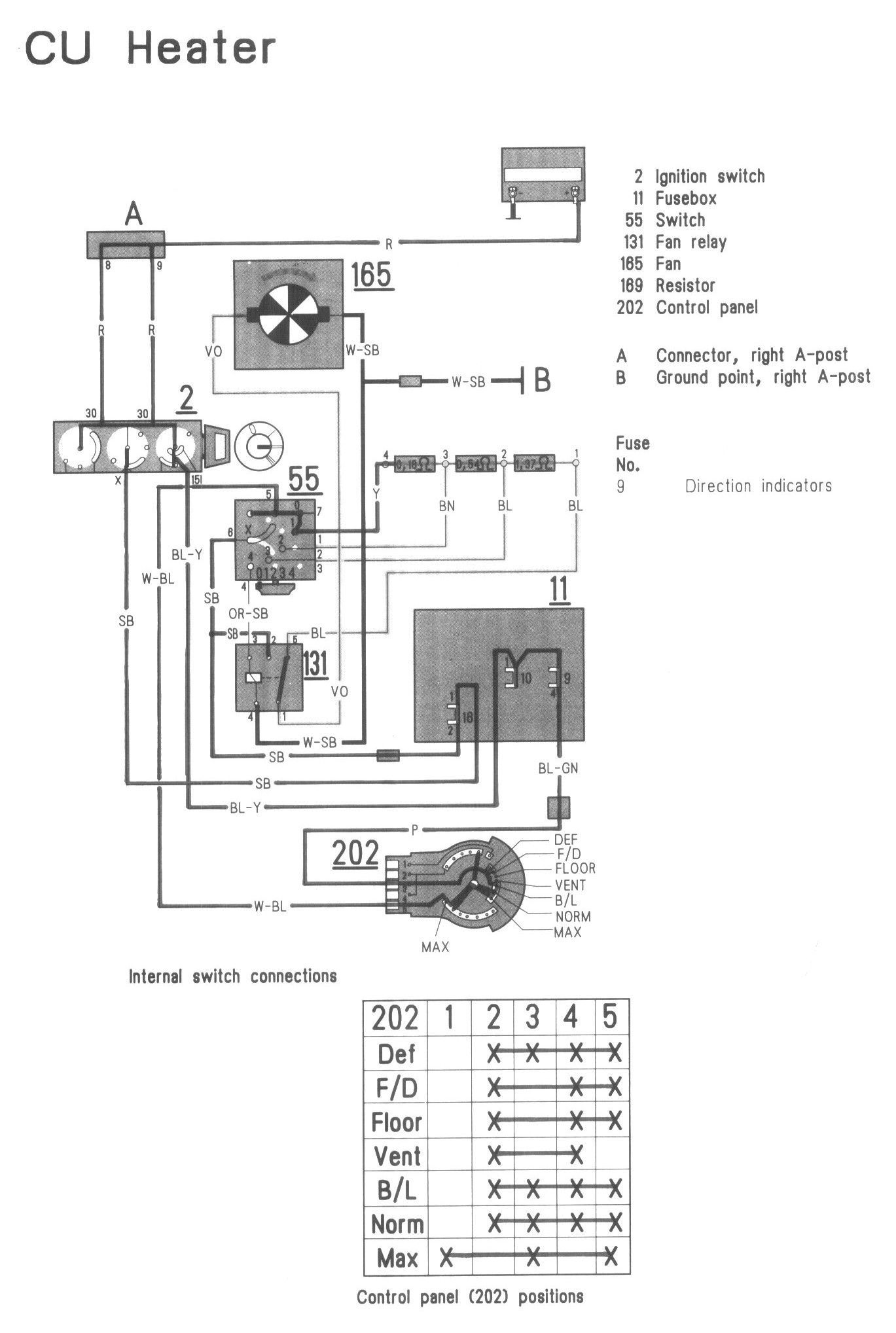

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fuse box
55 Switch

131 Fan relay
165 Fan
189 Resistor
202 Control Panel

A Connector, right A-post
B Ground point, right A-post
