Radio - Digital Clock Function
85volvo02Subject: Product
CARS
1986 MY RADIO (TD 3141)
DIGITAL CLOCK Group
39
Date: No.
SEPTEMBER, 1985 1
THIS SERVICE MANAGER BULLETIN APPLIES TO THE U.S. AND CANADA
The digital clock function of the TD 3141 radio is turned OFF during installation. If desired, the clock function can be turned ON with the switch located at the rear of the tuner head.
DISPLAY
NOTE! The display can be set to show either only frequency or both frequency and time.
Frequency-time selector. Pos. 1: Frequency only Pos. 2: Frequency and time.
NOTE: THIS PROCEDURE IS NOT COVERED UNDER WARRANTY. CLAIMS WILL NOT BE ACCEPTED FOR RETURNING SELECTOR SWITCH TO TIME FUNCTION.
If an exchange unit is installed, set frequency-time selector switch to same position as before or as requested by the vehicle owner.
RADIO CONNECTIONS 1985 ALPINE TD3141

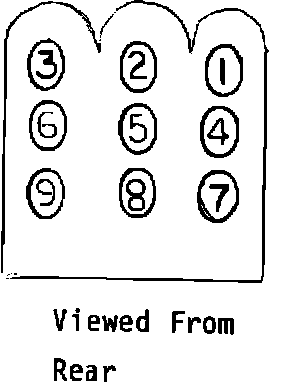

CAR HARNESS (FEMALE PINS)
TERMINAL #'s FUNCTION
1 (GN-R) Constant power fuse #5
2 (OR) Switched power fuse #14 (key on)
3 (RED) Powered from radio for electrical
antenna (also graphic equalizer)
4 (Y-W) Left front speaker (+)
5 (Y-GN) Right front speaker (+)
6 (GR) Dims back lights in conjunction with
dash rheostat
7 (W) Left front speaker (-)
8 (GR) Right front speaker (-)
9 (B) Not used in North America

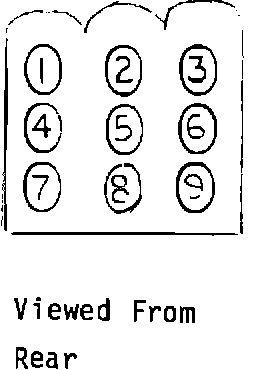

RADIO HARNESS (MALE PINS)
1 (GN) 7 amp in line fuse power for amp
2 (BL)
3 (R)
4 (W-BL) Illustrated color changes across
5 (BL-W) the connector
6 (GR)
7 (W)
8 (LIGHT BL)
9 (BLACK)
OTHER WIRES FROM TUNER
YELLOW - ONE AMP FUSE DIMS DIGITAL DISPLAY ANYTIME PARKING LIGHTS ARE "ON" (HOOKED TO HEADLIGHT SWITCH)

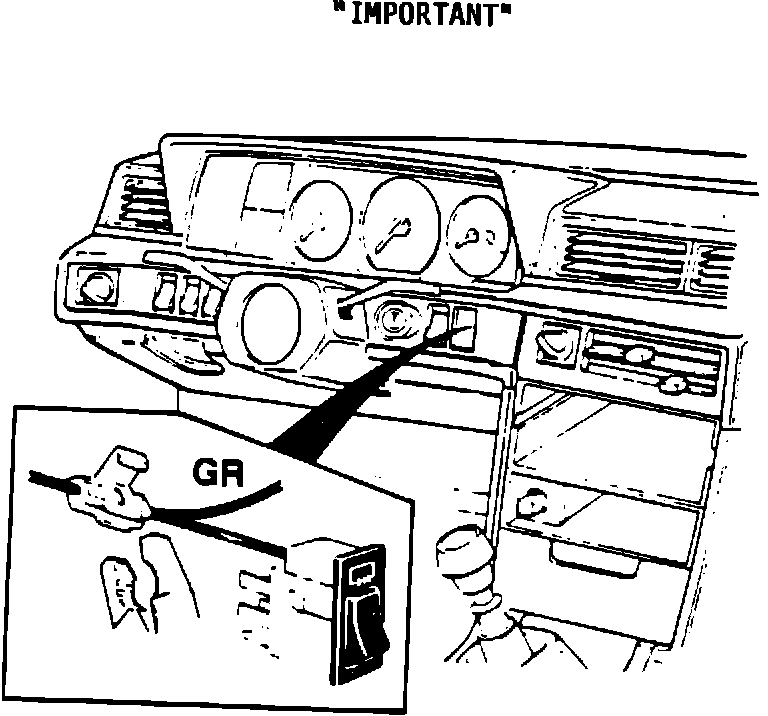

THE GREY WIRE IS SCOTCH-LOCKED TO THE DASH ILLUMINATION FOR THE REAR DEMIST.
THE "760" MUST BE FASTENED TO THE "WHITE" WIRE.
THE "740" MUST BE FASTENED TO THE "BLUE" WIRE.
IF THEY ARE REVERSED, THE ILLUMINATION OF THE RADIO CONTROLS IS INOPERATIVE
WITH THE LIGHTS ON.
