Oil Level Warning Indicator: Locations

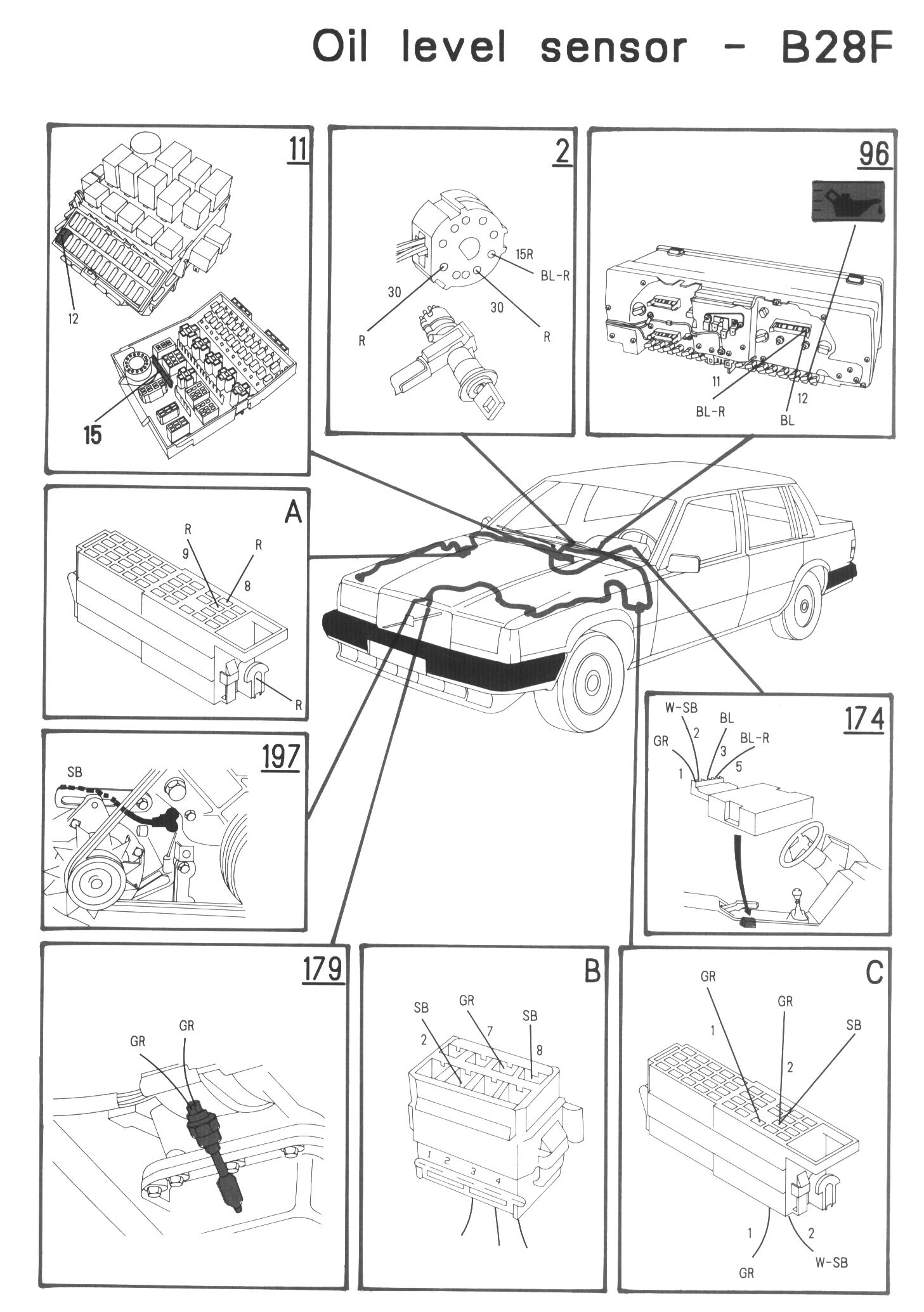

Component / Connector Views:

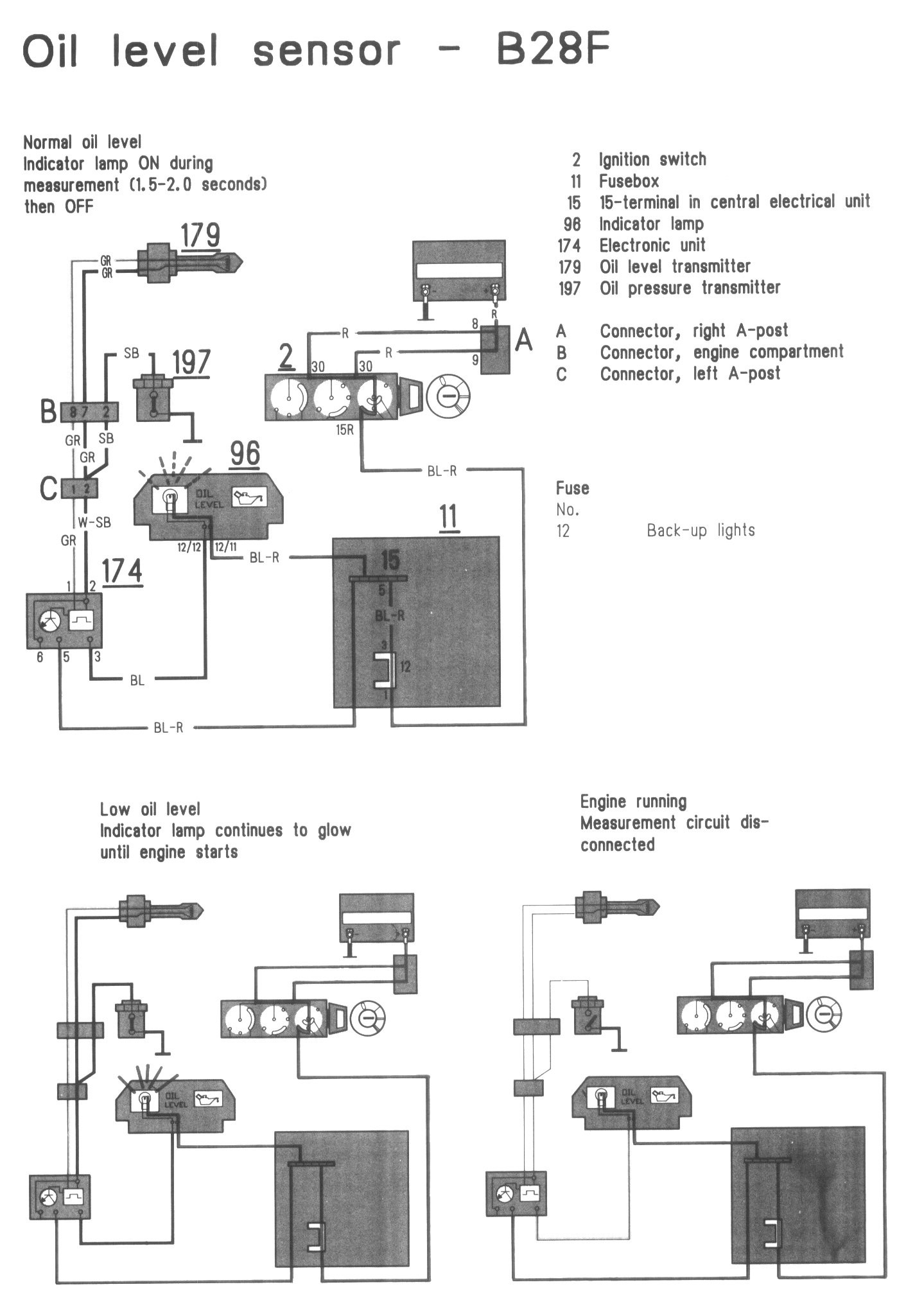

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
15 15-terminal in central electrical unit
96 Indicator lamp

174 Electronic unit
179 Oil level transmitter
197 Oil pressure transmitter

A Connector, right A-post
B Connector, engine compartment
C Connector, left A-post
