CU Heater

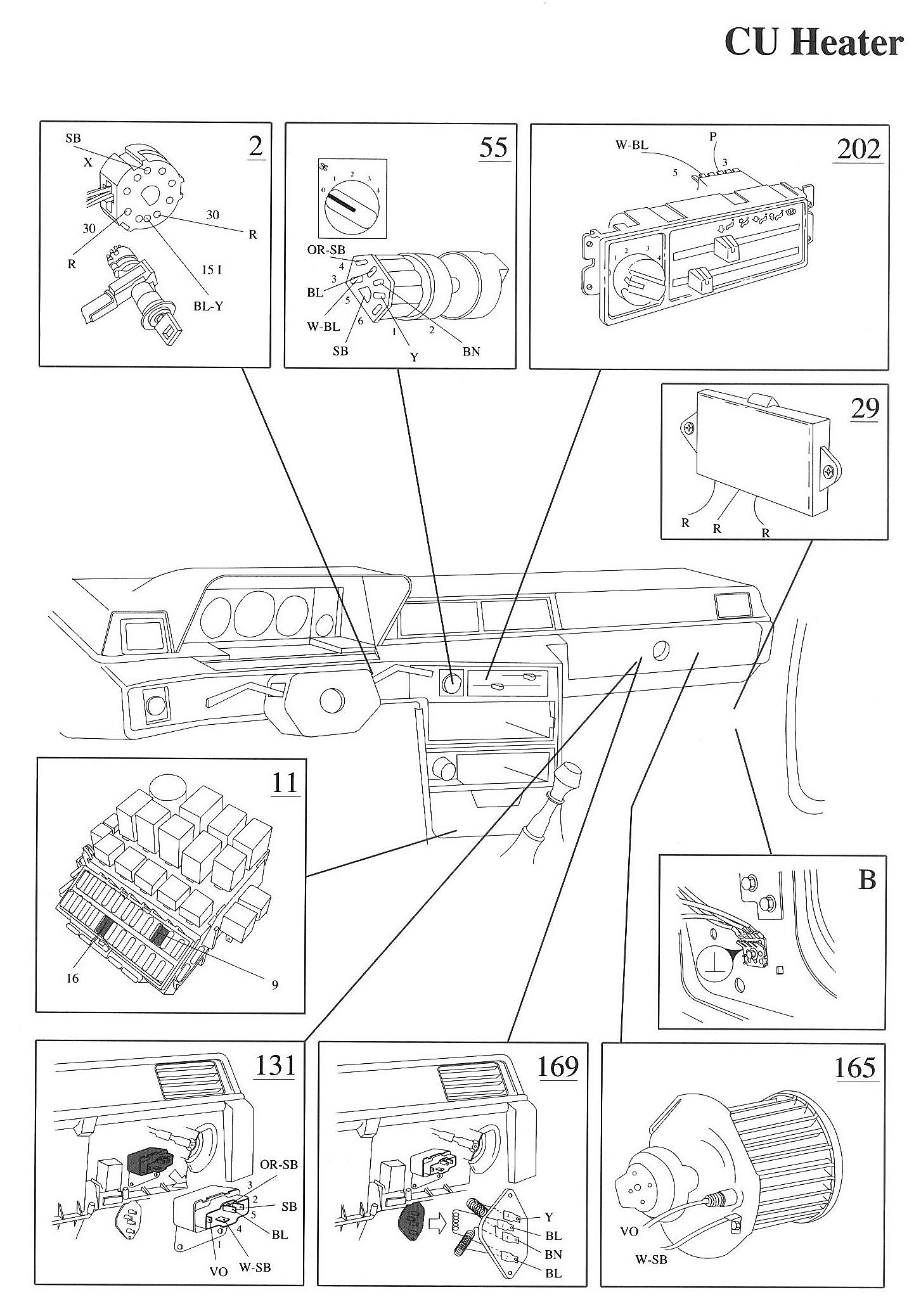

Component / Connector Views:

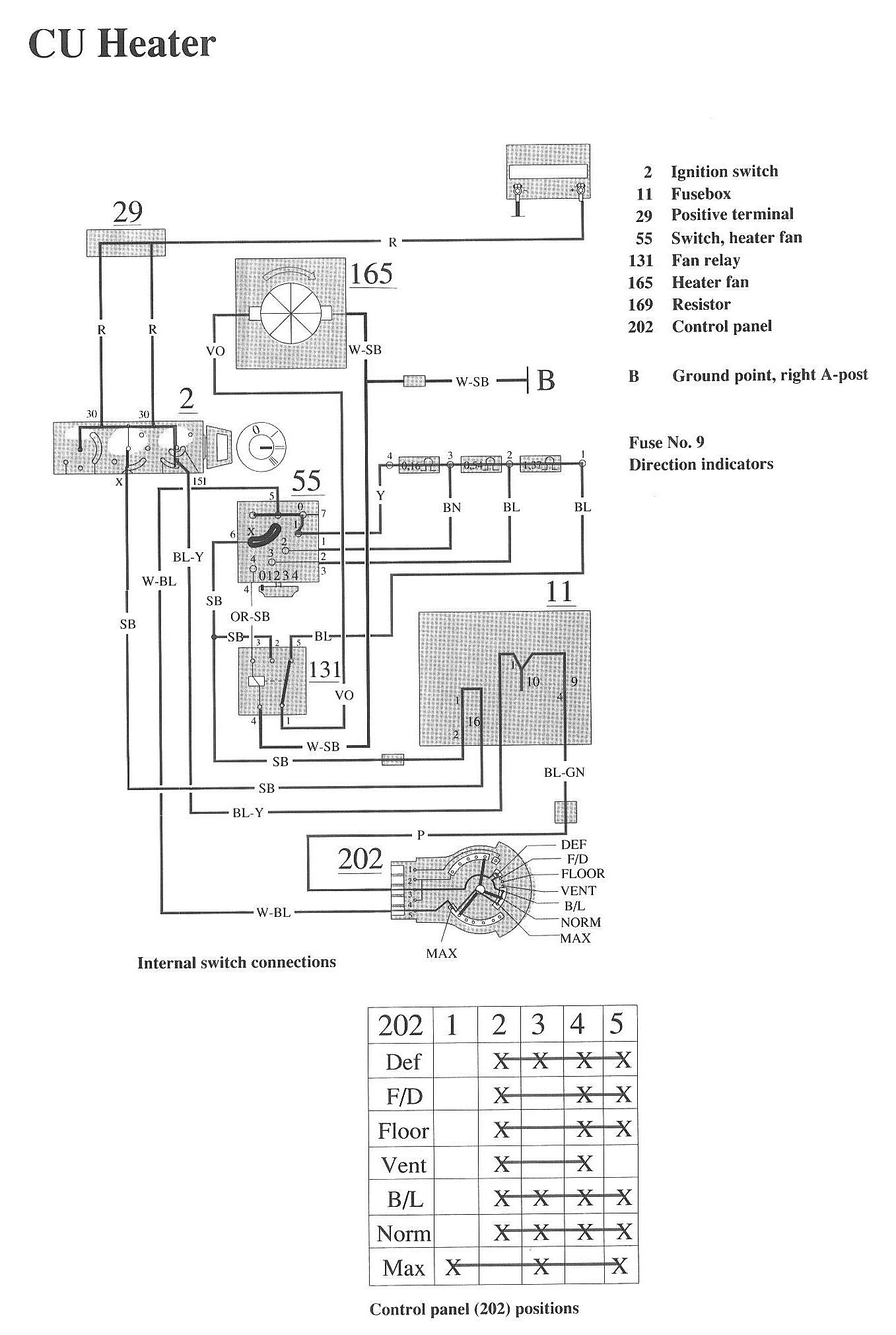

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fuse box
29 Positive terminal
55 Switch, heater fan

131 Fan relay
165 Heater fan
169 Resistor
202 Control panel

B Ground point, right A-post
