Ignition Coil Signal Test

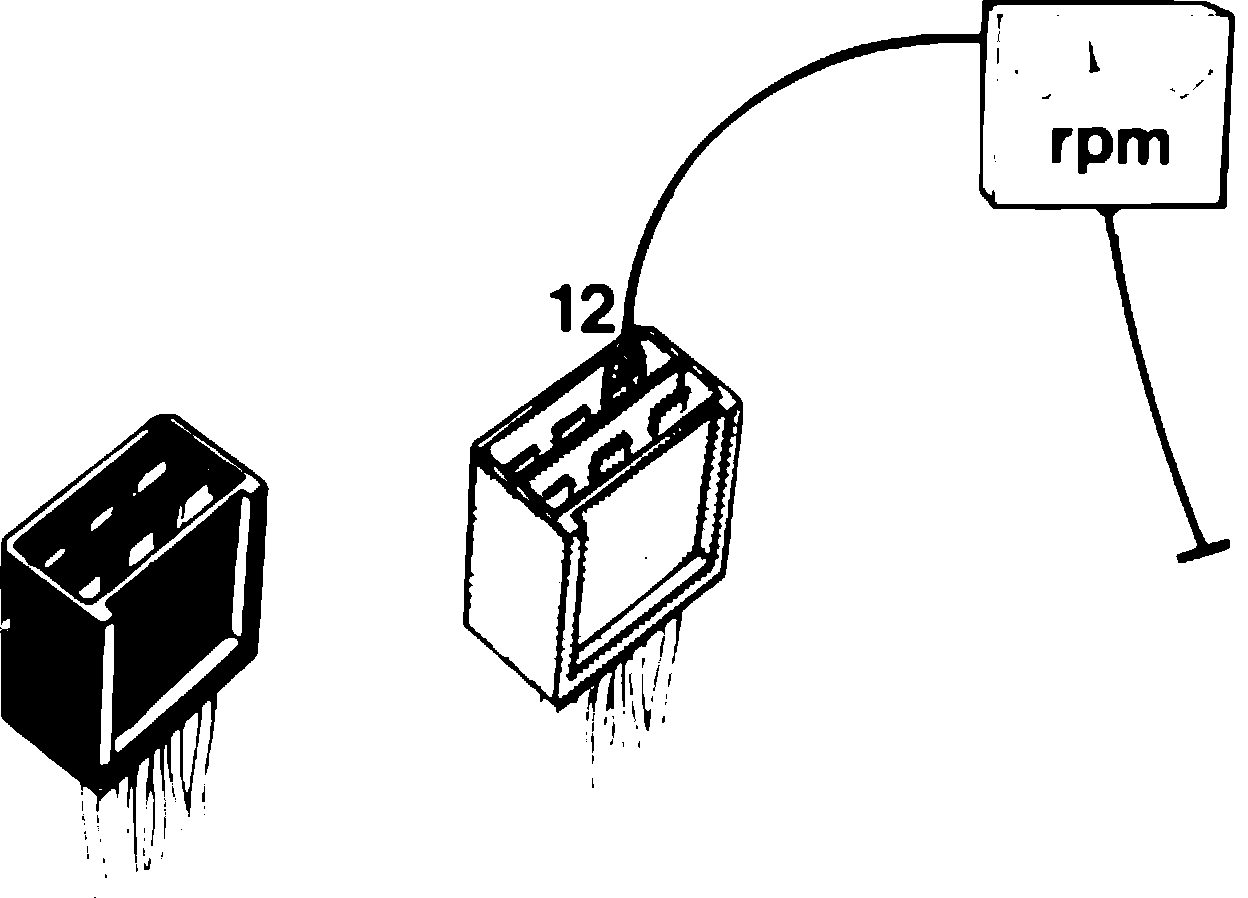

Fig. 7 Connecting tachometer to electrical connector terminal 12:

1. Connect a suitable tachometer to electrical connector terminal 12, Fig. 7.
2. Start engine. Tachometer reading should indicate 750 RPM with engine hot and A/C off.
3. Leave tachometer connected and engine operating.
