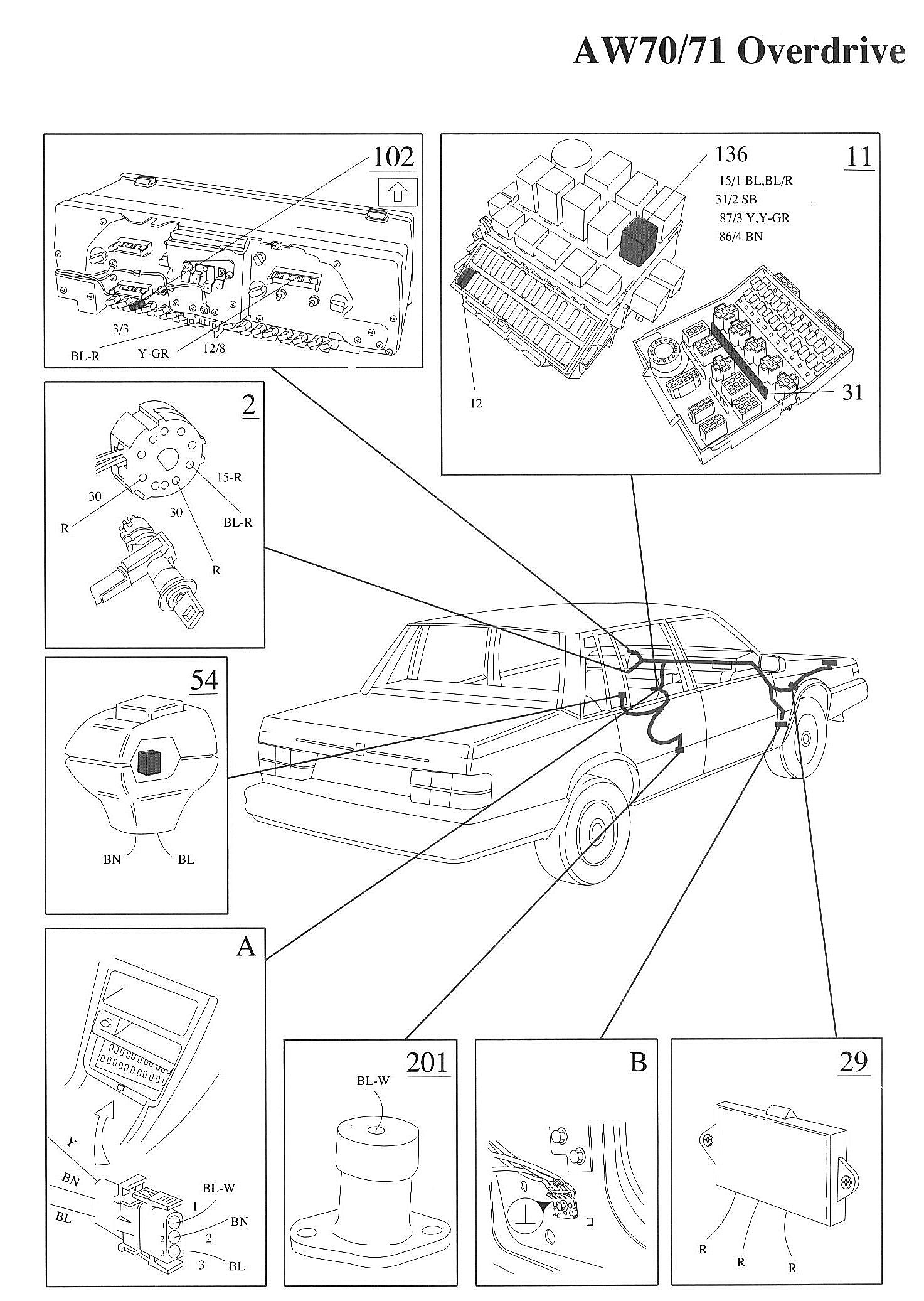

Overdrive Assembly: Locations

Component / Connector Views:

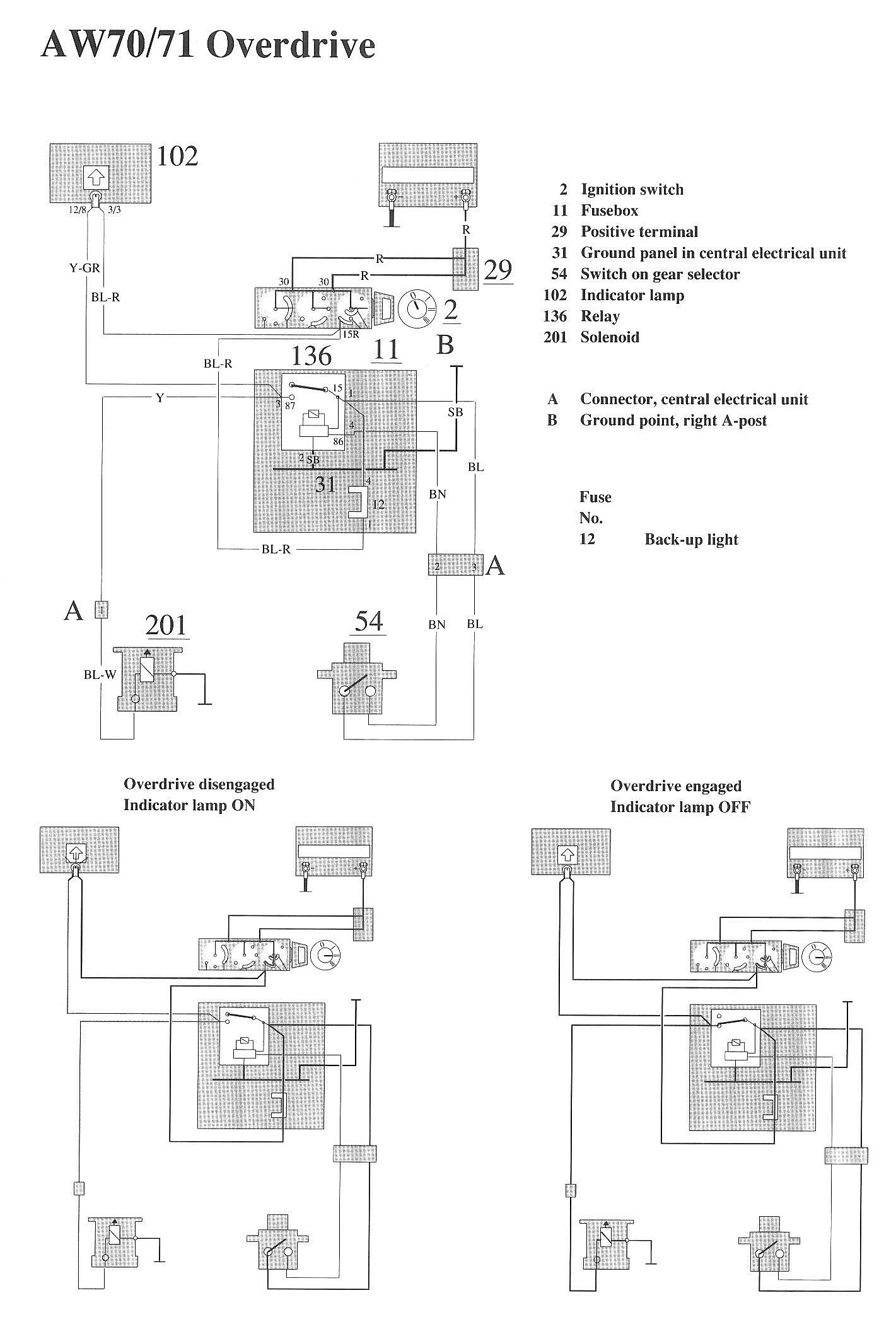

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fusebox
29 Positive terminal
31 Ground panel in central electrical unit
54 Switch on gear selector

102 Indicator lamp
136 Relay
201 Solenoid
