Rear Defogger: Locations

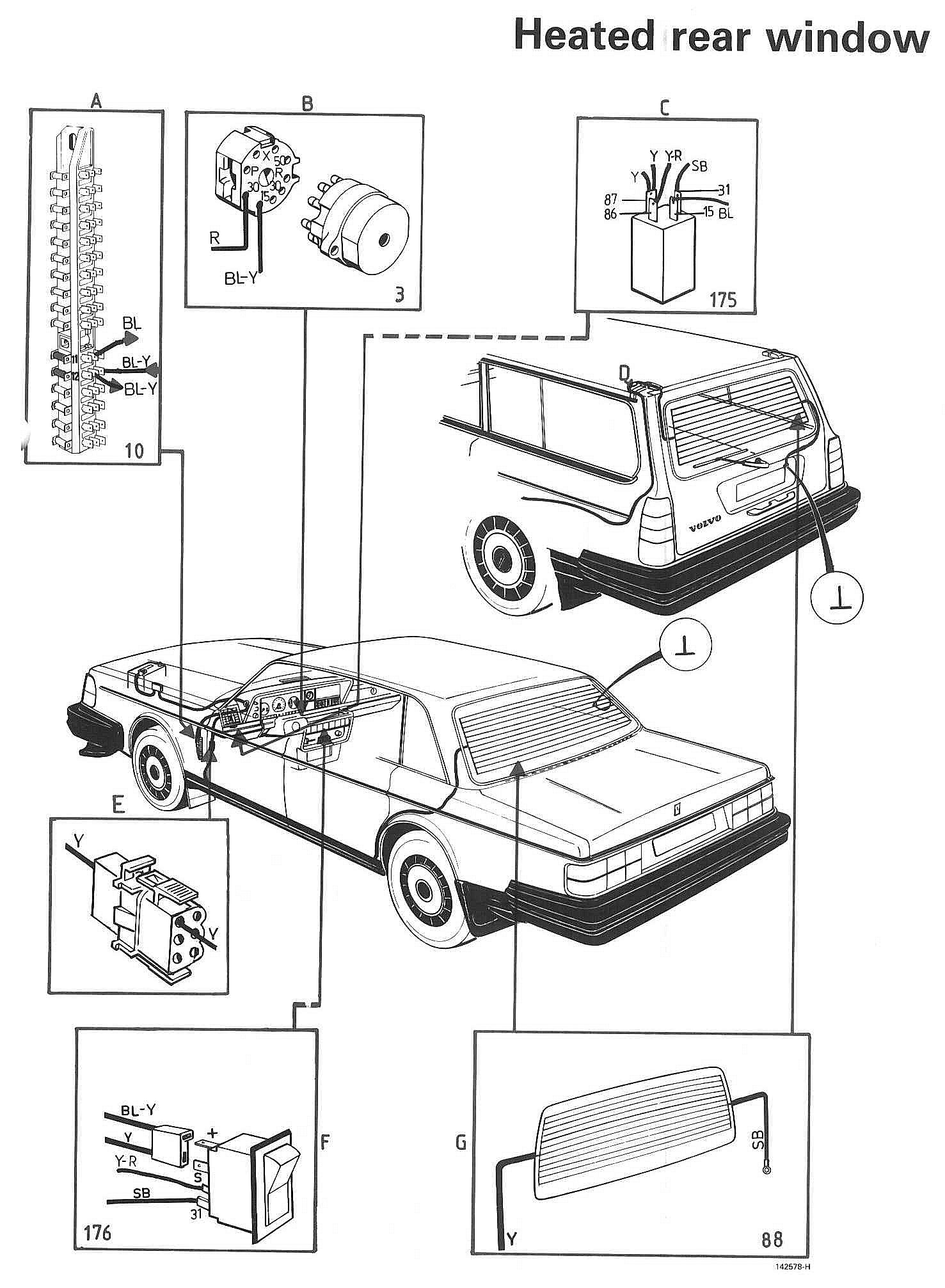

Locations/Connector Views:
Wiring Diagrams:
LEGEND
A
Fusebox
B
Ignition switch
C
Time delay relay
D
Connector
E
Connector
F
Switch for heated rear window
G
Heated rear window
