Power Locks: Locations

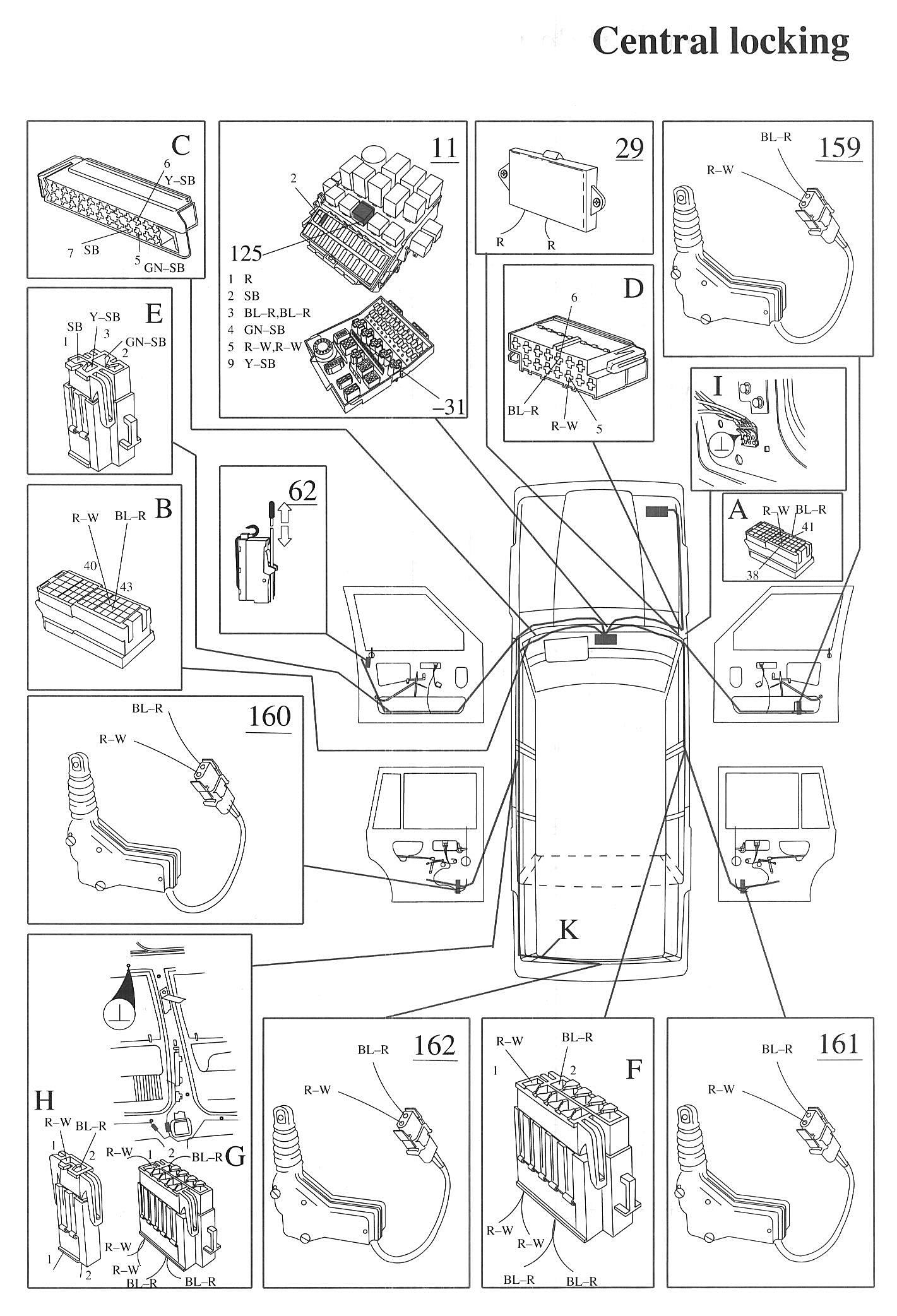

Component / Connector Views:

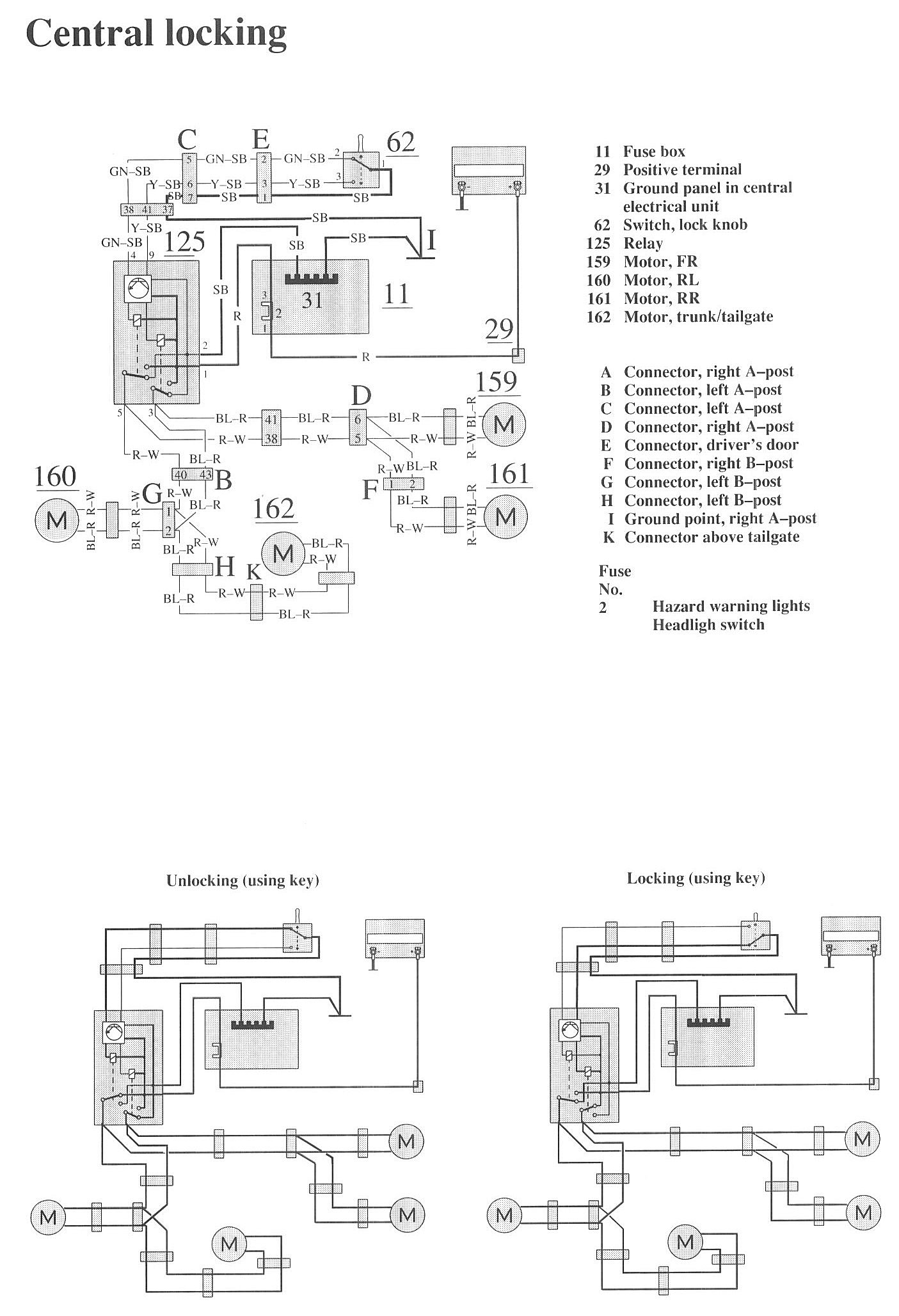

Wiring Diagrams:

LEGEND
11 Fuse box
29 Positive terminal
31 Ground panel in central electrical unit
62 Switch, lock knob

125 Relay
159 Motor, FR
160 Motor, RL
161 Motor, RR
162 Motor, trunk/tailgate

A Connector, right A-post
B Connector, left A-post
C Connector, left A-post
D Connector, right A-post
E Connector, driver's door
F Connector, right B-post
G Connector, left B-post
H Connector, left B-post
I Ground point, right A-post
K Connector above tailgate
