Window Regulator - Modification Procedure
88volvo09SECTION GROUP NO.
83 102
DATE October 1988
RE:
Front Door Window Regulator Modification Procedure
1988 740
THIS BULLETIN APPLIES TO THE U.S. ONLY It also supersedes SB GR. 83 No. 102 Date August 1988.
REFERENCE:TP 31127/1 (ENGLISH): BODY REFERENCE:SERVICE MANAGER BULLETIN GR.83 NO.6
This bulletin describes modification procedures for the pivot on front door window regulators manufactured by C.I.M. and is applicable to M/Y 1988 vehicles manufactured in Gent (2) with chassis numbers up to and including:
744:190748 - 297065 745:116100 - 178982
Vehicles with the above chassis number range must have the modification performed during the next service opportunity.
PARTS REQUIRED PER VEHICLE:
DESCRIPTION PART NO. QUANTITY
^ Modification Kit 75947-2 2 (Composed of sprocketed pivot washer and screw)
^ Locking fluid (Locktite 242, Blue) 1161053-2 *
(* one tube containing 10 ml will be sufficient for the modification of at least 15 vehicles.)
^ Multi-purpose grease 80g part number 1161241-3 sufficient use for 15 cars 400g part number 1161251-2 sufficient use for 50 cars
TOOLS REQUIRED:
- Counter support, i.e. socket 22 mm
- punch, with a diameter of 9 +/- 0.5 mm
- hammer
- 10 mm wrench
- 10 mm socket
- pliers
- torque wrench
- screwdriver
WORK PROCEDURE:
Refer to Service Manual TP31127/1 9/88
REMOVE: - Door Panel
- Window Regulator (Leave door glass in up position)
MODIFICATION OF WINDOW REGULATOR
DISASSEMBLE WINDOW REGULATOR
CAUTION:
Wear goggles to protect eyes in case loaded spring suddenly slips and becomes a projectile.
- using pliers, grip the end of the spring at the retaining tang. Unhook the spring
- punch out the old pivot by using the counter support, punch and hammer
MODIFICATION OF FRONT DOOR WINDOW REGULATOR

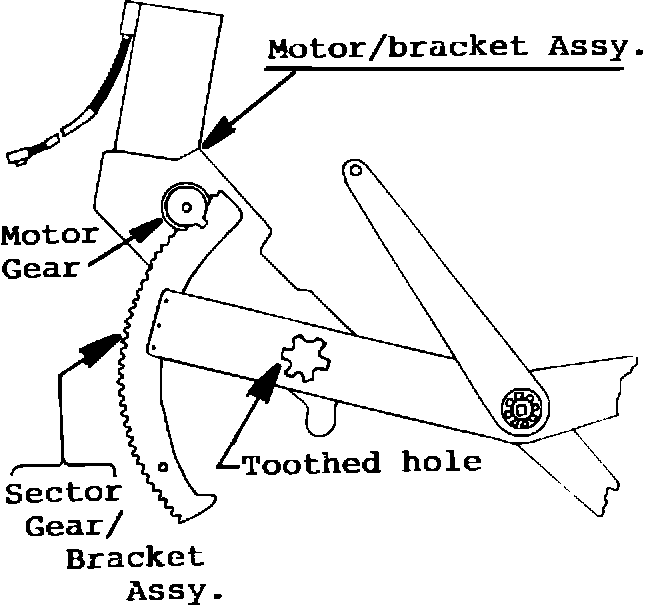

FIGURE 1:
Note: This procedure shows left (driver) side regulator. Right side is a mirror image of illustrations shown in this bulletin.
Align the two assemblies as shown in Figure 1. Engage with 3rd tooth of the sector gear with the motor gear while holding the two assemblies together.
Align the toothed hole on the sector gear bracket assembly with the larger hole in the motor bracket assembly while still keeping the gears engaged.

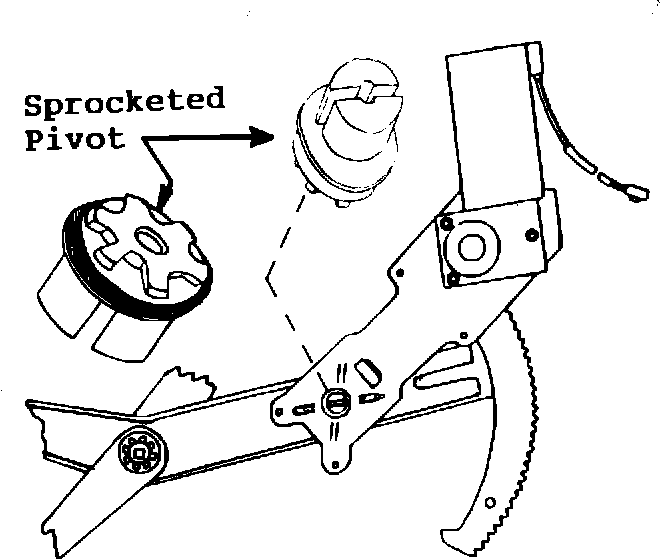

FIGURE 2:
Lubricate shaded area of sprocketed pivot (see fig. 2) using multipurpose grease. Insert the sprocketed pivot into the aligned holes with the slot on the side opposite the sprocket to coincide with stamped channels in bracket as shown.

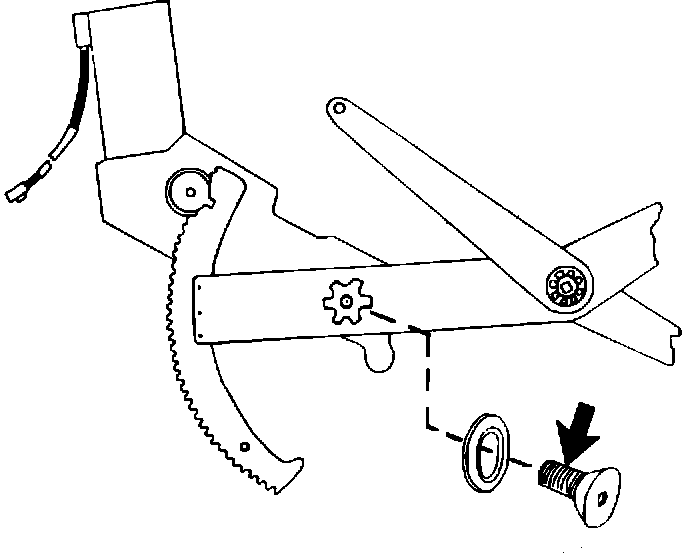

FIGURE 3:
Apply locking fluid (Lock-tite) to threads of screw. Install washer and screw into pivot. Tighten screw firmly, using 10 mm wrench.
Torque: 10 N-m (84 in.lb.)
FIGURE 4:
LOCK-TITE THREADS
Flip the mated assemblies over and position as shown in fig.4.
Align the spring with inner bend coinciding with pivot slot exactly as shown. Lay the spring in place.
Please read the CAUTION on the following page before proceeding.

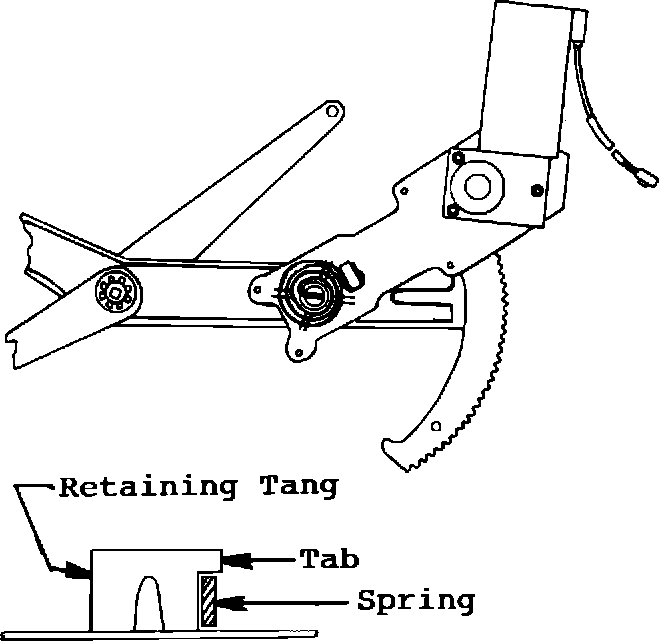

FIGURE 5:
CAUTION:
Wear goggles to protect eyes in case loaded spring suddenly slips and becomes a projectile.
Hold the inner part of the spring in place in the slot with one hand. Using pliers, grip the spring and wind approximately 1/3 of a turn clockwise* and place outer bend around metal tab to hold it in place as shown in Figure 5.
* Special Note: Wind spring counter-clockwise for right side door regulator.
Spring must be positioned under tab (as shown) on retaining tang.
REASSEMBLE THE DOOR
Reinstall:
- Window regulator
- Four mounting nuts. Tighten fully only when window is closed.
Torque: 10 N-m (84 in.lb.) + 90 degree angle torque
- Connect wiring
- Refit all other components in reverse order.
VERIFY REPAIR
- Move glass up and down twice and verify good functioning
- Correct if necessary
- Complete campaign modification label and affix it to the drivers door jamb.
October 5, 1988
Dear Volvo Owner:
Our quality control does not stop at the end of the production line. We follow our cars throughout their life cycles to be sure that they are operating as intended. Every once in a great while, we find something that does not meet our high standards and we feel obliged to correct it.
Now is one of those times. We are not satisfied with the electric front window mechanism with certain 1988 700 series Volvos. We find that after a time, some will not raise the window after it has been opened.
To be sure that you do not experience this inconvenience, we would appreciate it if you would schedule an appointment with your Volvo dealer to have your window lifts repaired. Of course, there will be no charge to you for this service.
Please accept my apology for this situation. If you have any questions you can contact your Volvo dealer. If you need more help, you may call Volvo Consumer Affairs at (201) 767-4737.
