Starting System: Locations

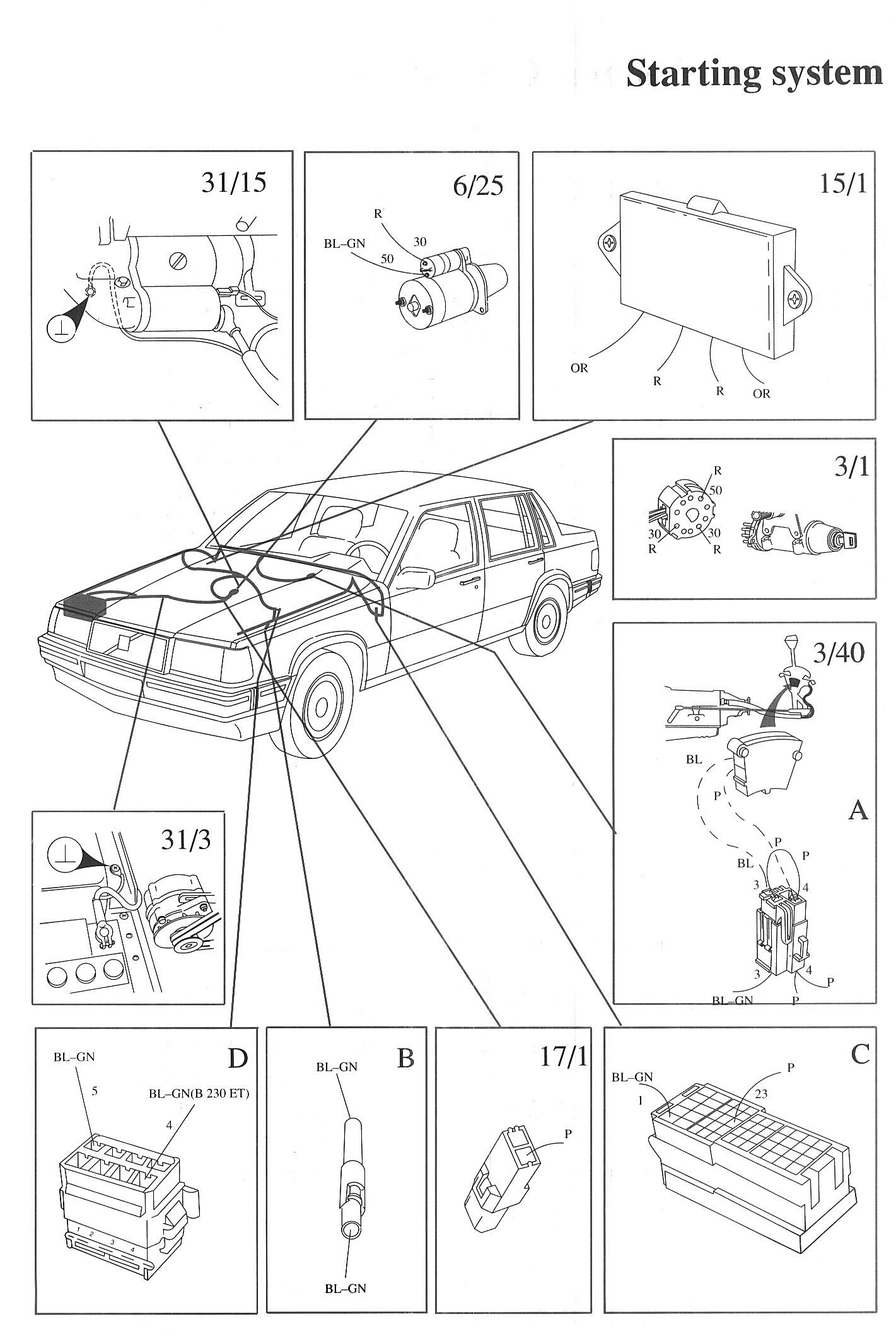

Component / Connector Locations:

Wiring Diagrams:

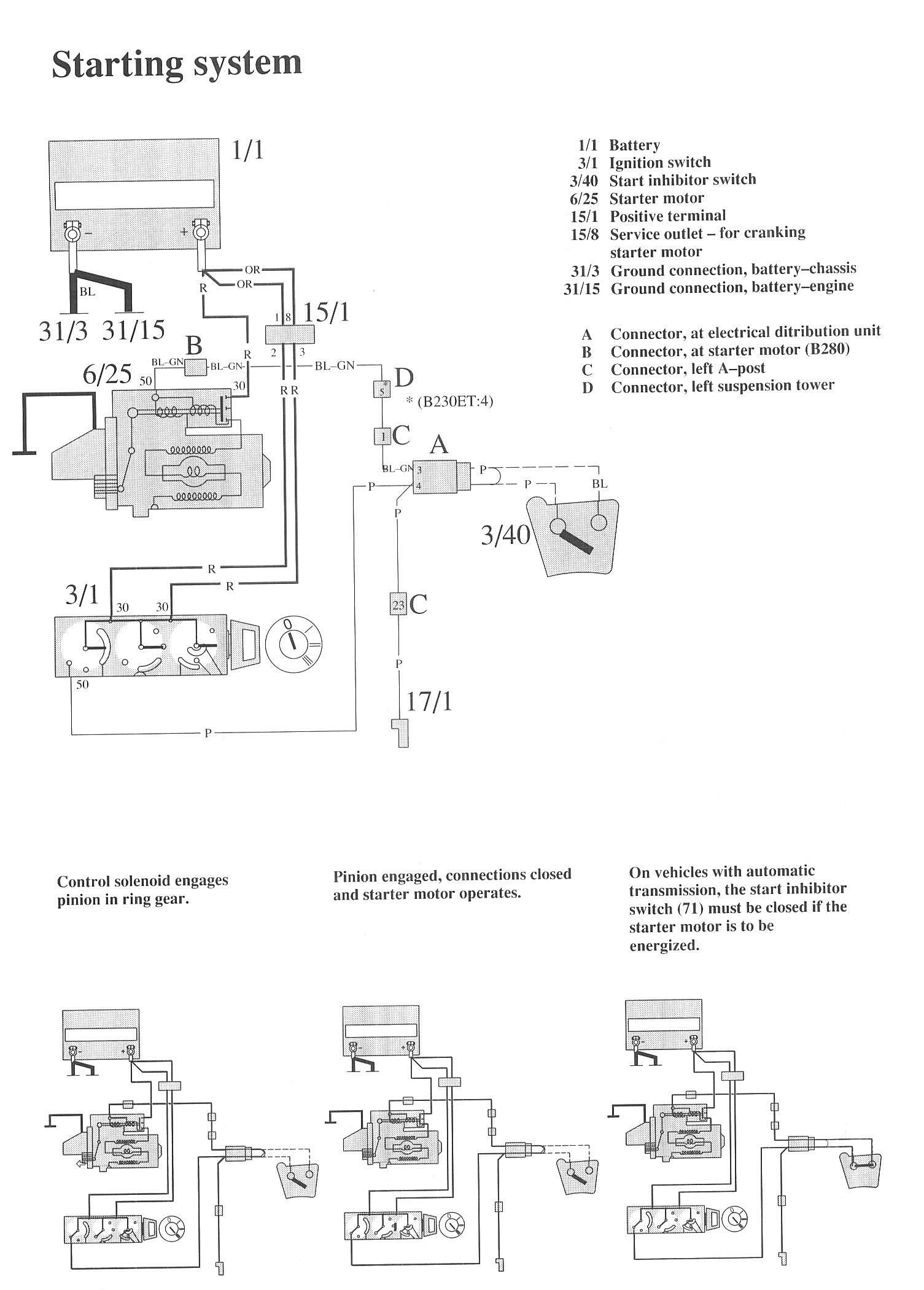

LEGEND
1/1 Battery
3/1 Ignition switch
3/40 Start inhibitor switch
6/25 Starter motor

15/1 Positive terminal
15/8 Service outlet - for cranking starter motor
31/3 Ground connection, battery-chassis
31/15 Ground connection, battery-engine
