Power Locks: Locations

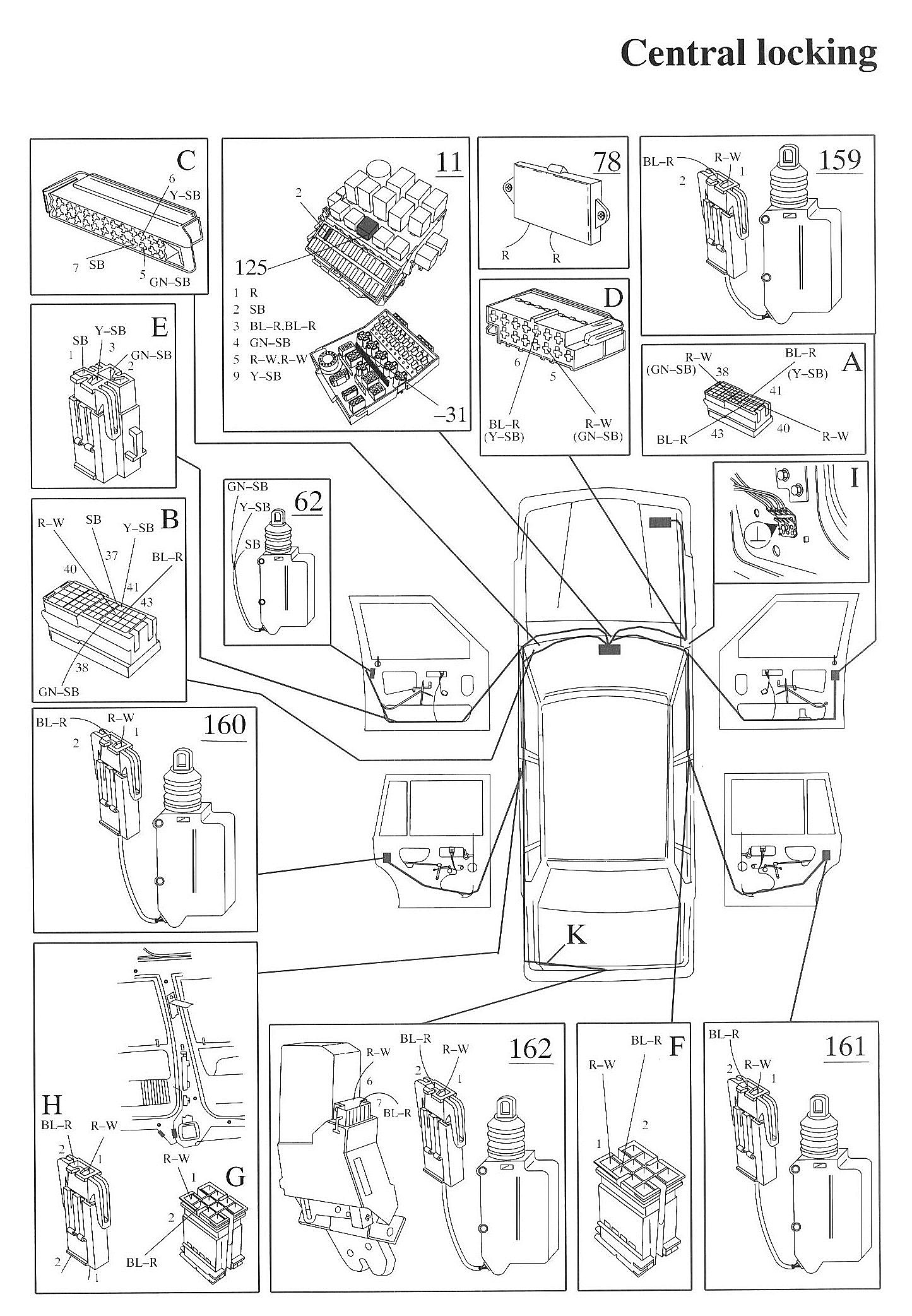

Component / Location Views:

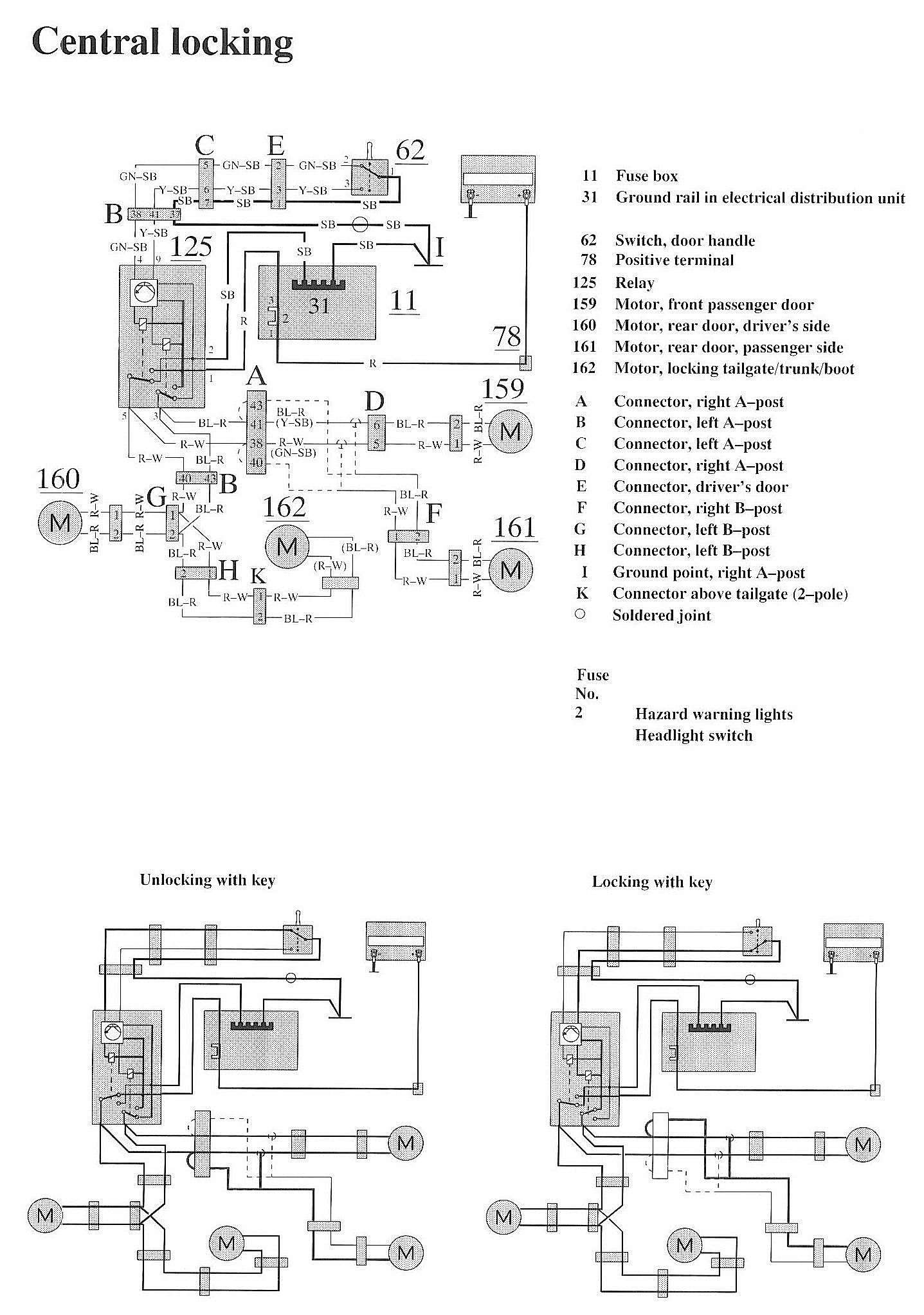

Wiring Diagrams:

LEGEND
11 Fuse box
31 Ground rail in electrical distribution unit
62 Switch, door handle
78 Positive terminal

125 Relay
159 Motor, front passenger door
160 Motor, rear door, driver's side
161 Motor, rear door, passenger side
162 Motor, locking tailgate/trunk/hoot

A Connector, right A-post
B Connector, left A-post
C Connector, left A-post
D Connector, right A-post
E Connector, driver's door
F Connector, right B-post
G Connector, left B-post
H Connector, left B-post
I Ground point, right A-post
K Connector above tailgate (2-pole)
