Restraints and Safety Systems: Locations

Component / Location Views:

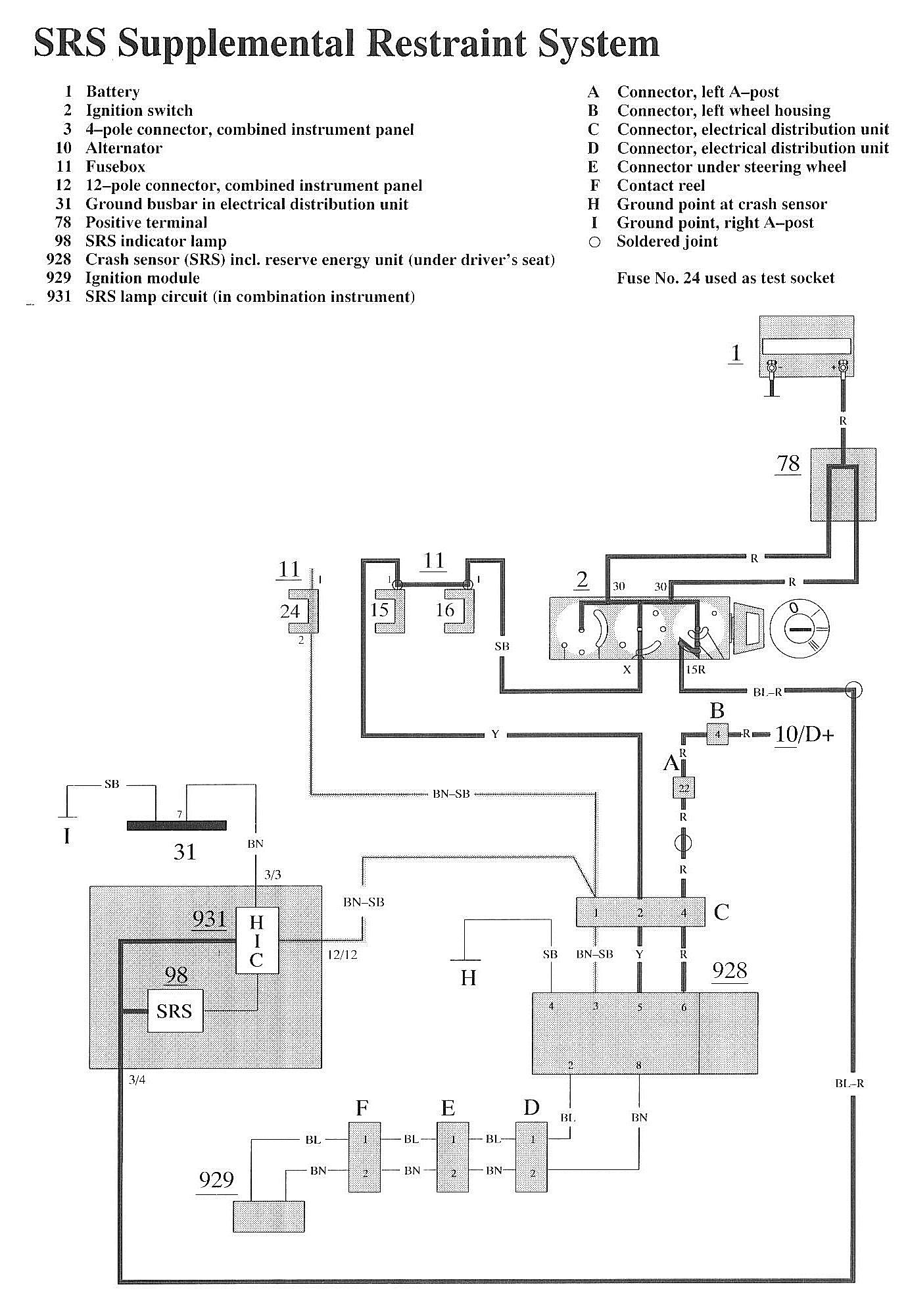

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
3 4-pole connector, combined instrument panel

10 Alternator
11 Fuse box
12 12-pole connector, combined instrument panel
31 Ground busbar in electrical distribution unit
78 Positive terminal
98 SRS indicator lamp

928 Crash sensor (SRS) incl. reserve energy unit (under driver's seat)
929 Ignition module
931 SRS lamp circuit (in combination instrument)

A Connector, left A-post
B Connector, left wheel housing
C Connector, electrical distribution unit
D Connector, electrical distribution unit
E Connector under steering wheel
F Contact reel
H Ground point at crash sensor
I Ground point, right A-post
