Valve, Intake/Exhaust

VALVE DIMENSIONS:

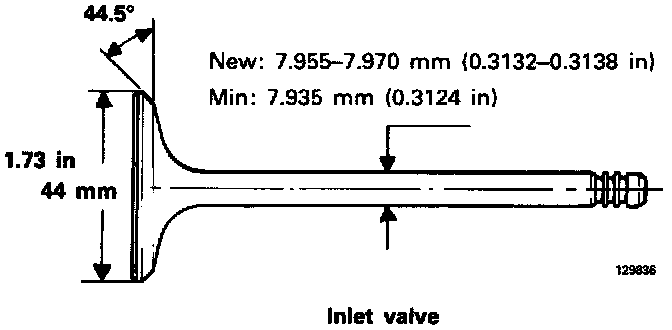

Intake Valve:

Intake:
Head Diameter: 44 mm (1.73 in.)
Face Angle: 44.5°
Stem Diameter [1]:
New: 7.955-7.970 mm (0.3132-0.3138 in.)
Min: 7.935 mm (0.3124 in.)

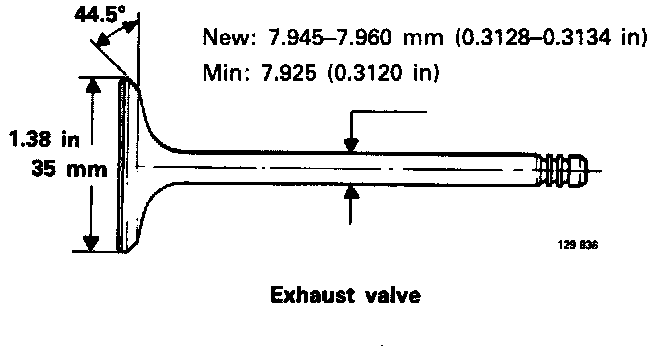

Exhaust Valve:

Exhaust:
Head Diameter: 35 mm (1.38 in.)
Face Angle: 44.5°
Stem Diameter [1]:
New: 7.945-7.960 mm (0.3128-0.3134 in.)
Min: 7.925 mm (0.3120 in.)


_____________________________________
[1]: Measure diameter of stem in middle of travel.
