Fuel Injection System

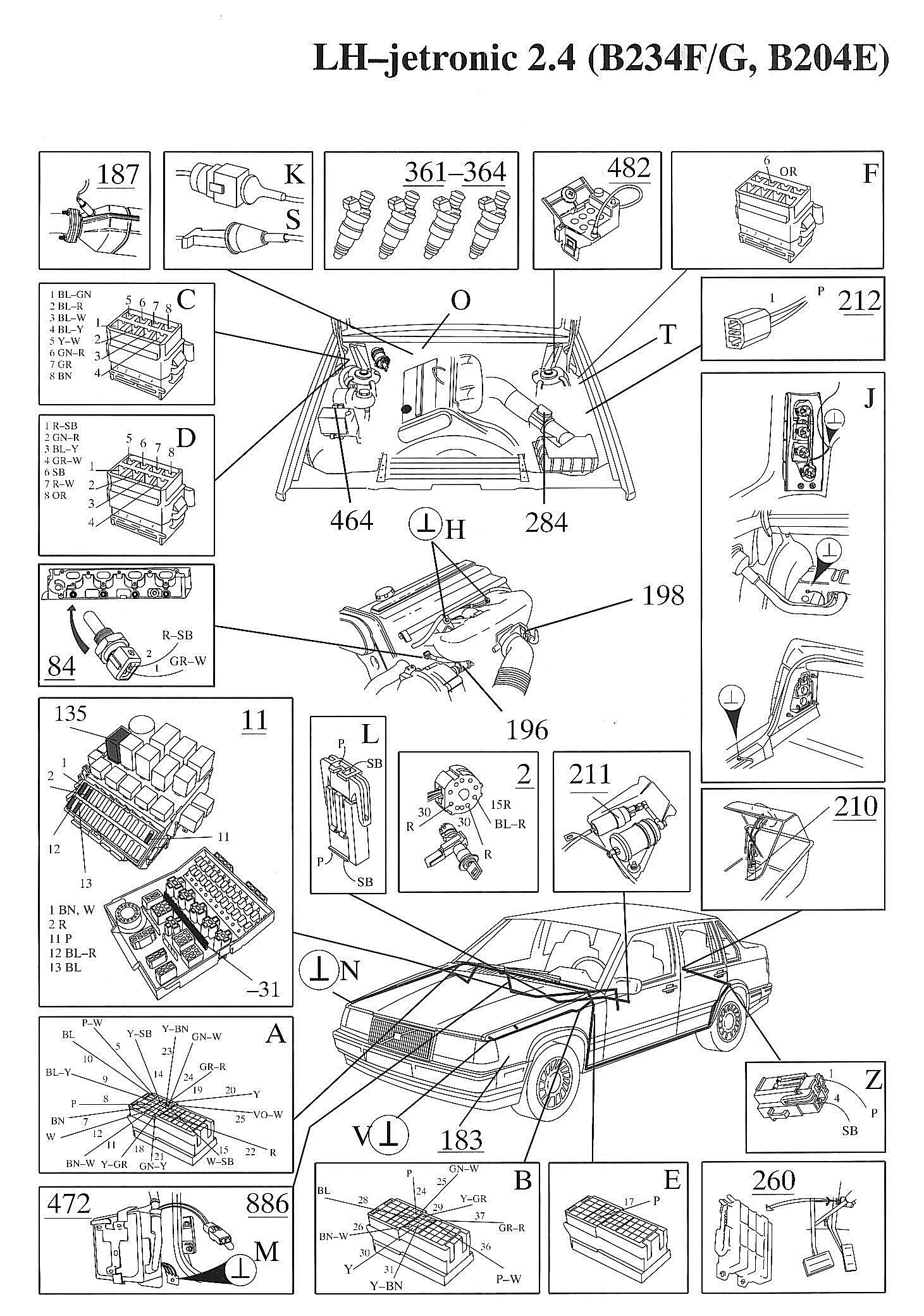

Component / Location Views:

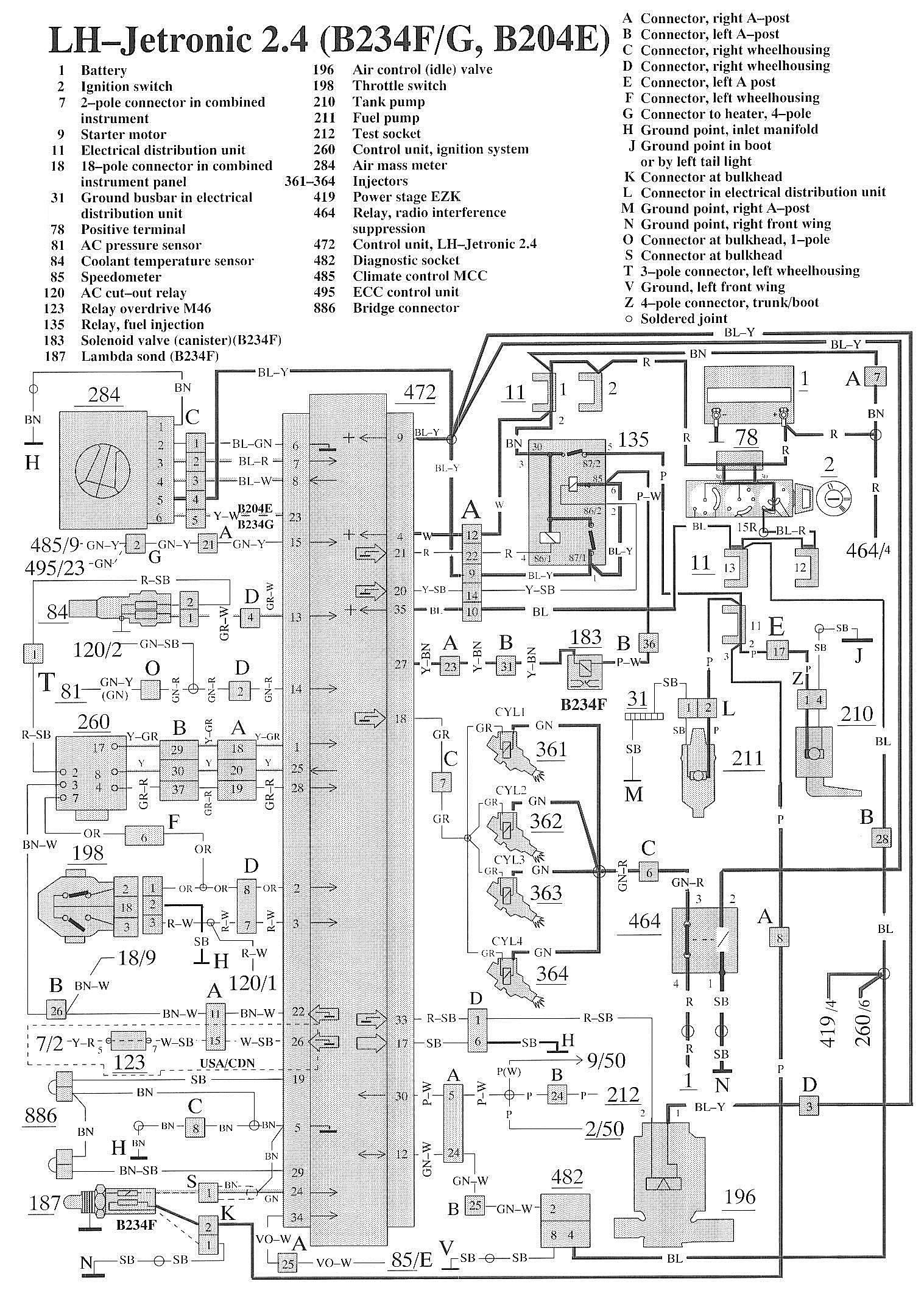

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
7 2-pole connector in combined instrument
9 Starter motor

11 Electrical distribution unit
18 18-pole connector in combined instrument panel
31 Ground busbar in electrical distribution unit
78 Positive terminal
81 AC pressure sensor
84 Coolant temperature sensor
85 Speedometer

120 AC cut-out relay
123 Relay overdrive M46
135 Relay, fuel injection
183 Solenoid valve (canister)(B234F)
187 Lambda sond (B234F)
196 Air control (idle) valve
198 Throttle switch
210 Tank pump
211 Fuel pump
212 Test socket
260 Control unit, ignition system
284 Air mass meter
361-364 Injectors
419 Power stage EZK
464 Relay, radio interference suppression
472 Control unit, LH-Jetronic 2.4
482 Diagnostic socket
485 Climate control MCC
495 ECC control unit
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right wheel housing
D Connector, right wheel housing
E Connector, left A post
F Connector, left wheel housing
G Connector to heater, 4-pole
H Ground point, inlet manifold
J Ground point in boot or by left tail light
K Connector at bulkhead
L Connector in electrical distribution unit
M Ground point, right A-post
N Ground point, right front wing
O Connector at bulkhead, 1-pole
S Connector at bulkhead
T 3-pole connector, left wheel housing
V Ground, left front wing
Z 4-pole connector, trunk/boot
