Power Seats

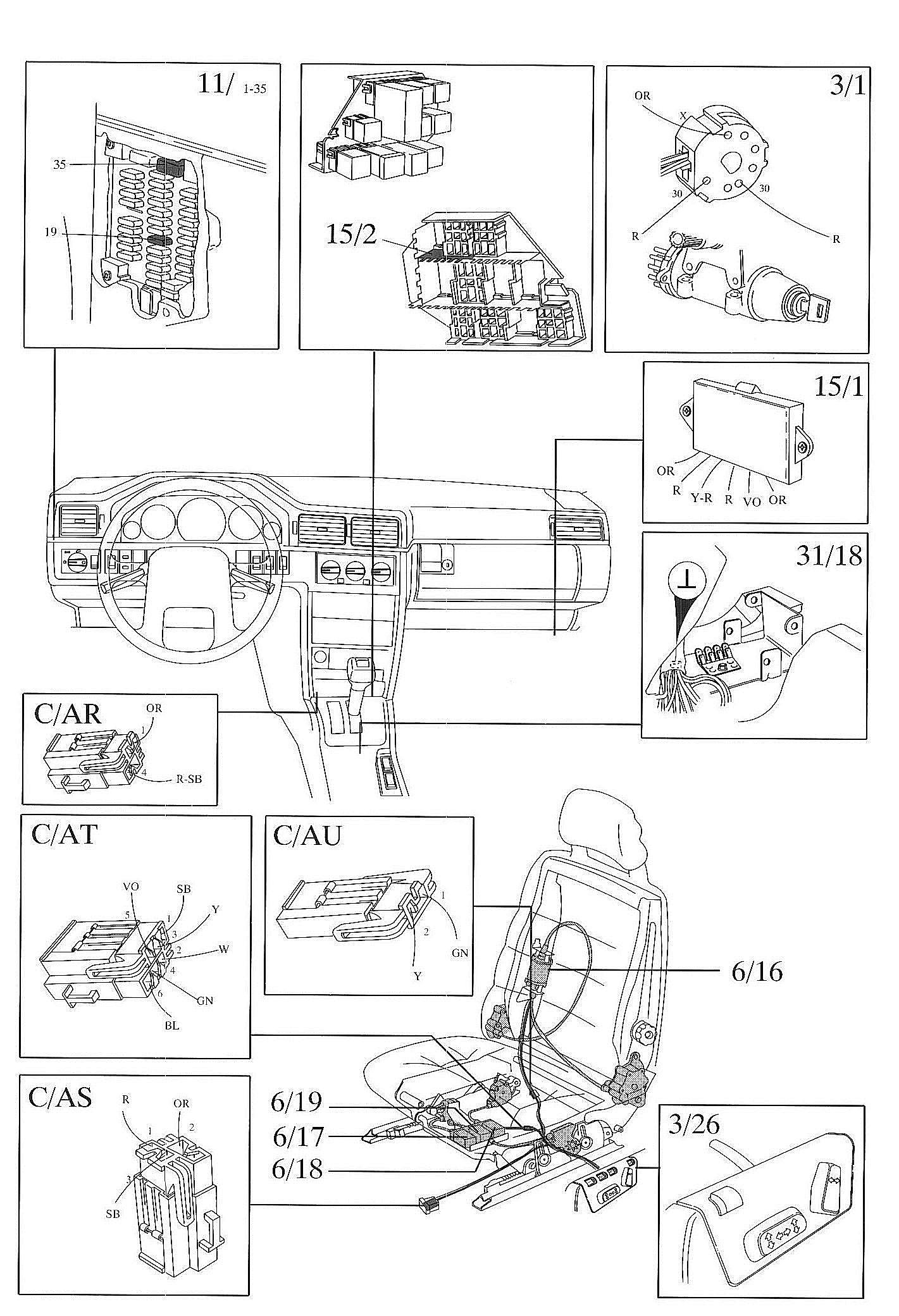

Component / Connector Locations:

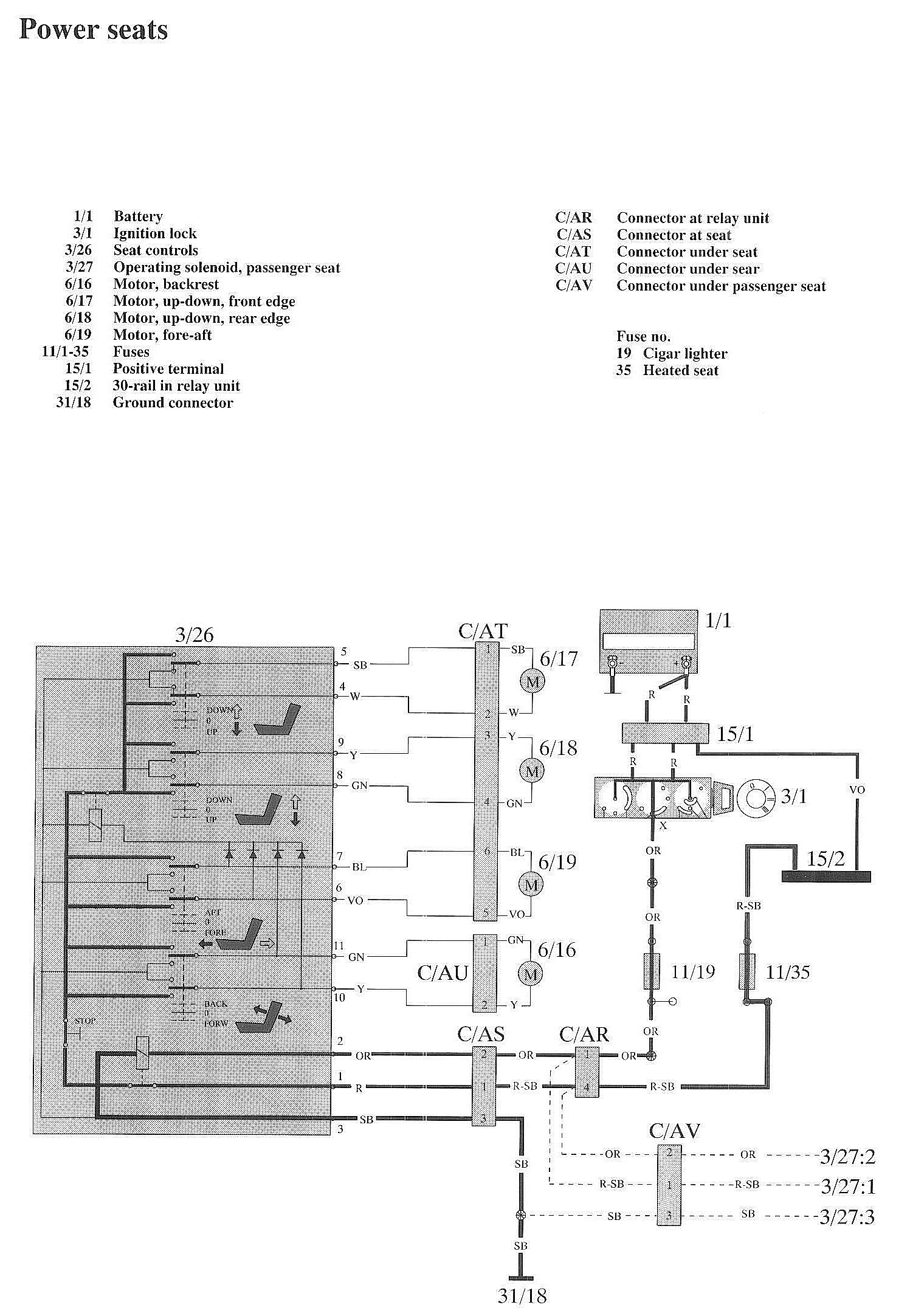

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/26 Seat controls
3/27 Operating solenoid, passenger seat
6/16 Motor, backrest
6/17 Motor, up-down, front edge
6/18 Motor, up-down, rear edge
6/19 Motor, fore-aft

11/1-35 Fuses
15/1 Positive terminal
15/2 30-rail in relay unit
31/18 Ground connector
