ZF 4 HP 22 4-SPD A/T

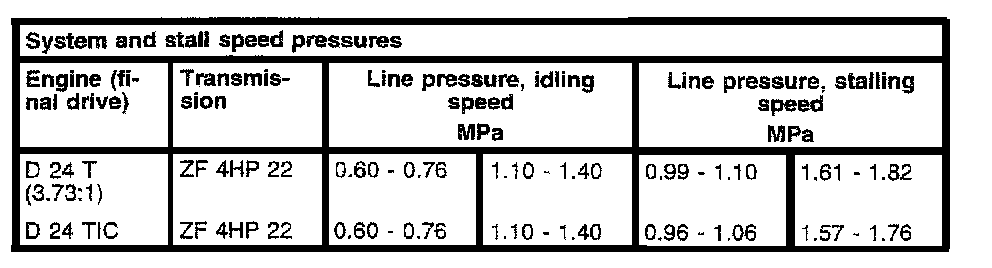

ZF 4 HP 22 4-spd A/T Technical Data:

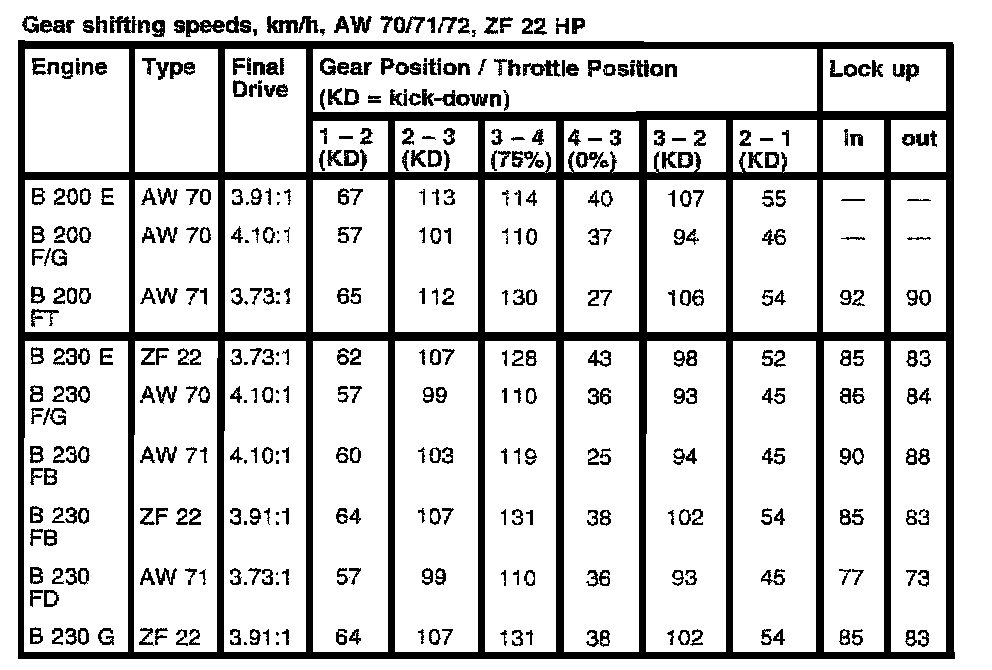

ZF 4 HP 22 A/T Technical Data Cont.:

ZF 4 HP 22 4-spd A/T Technical Data Cont.:

ZF 4 HP 22 Technical Data Cont.:
