Heated Rear Window

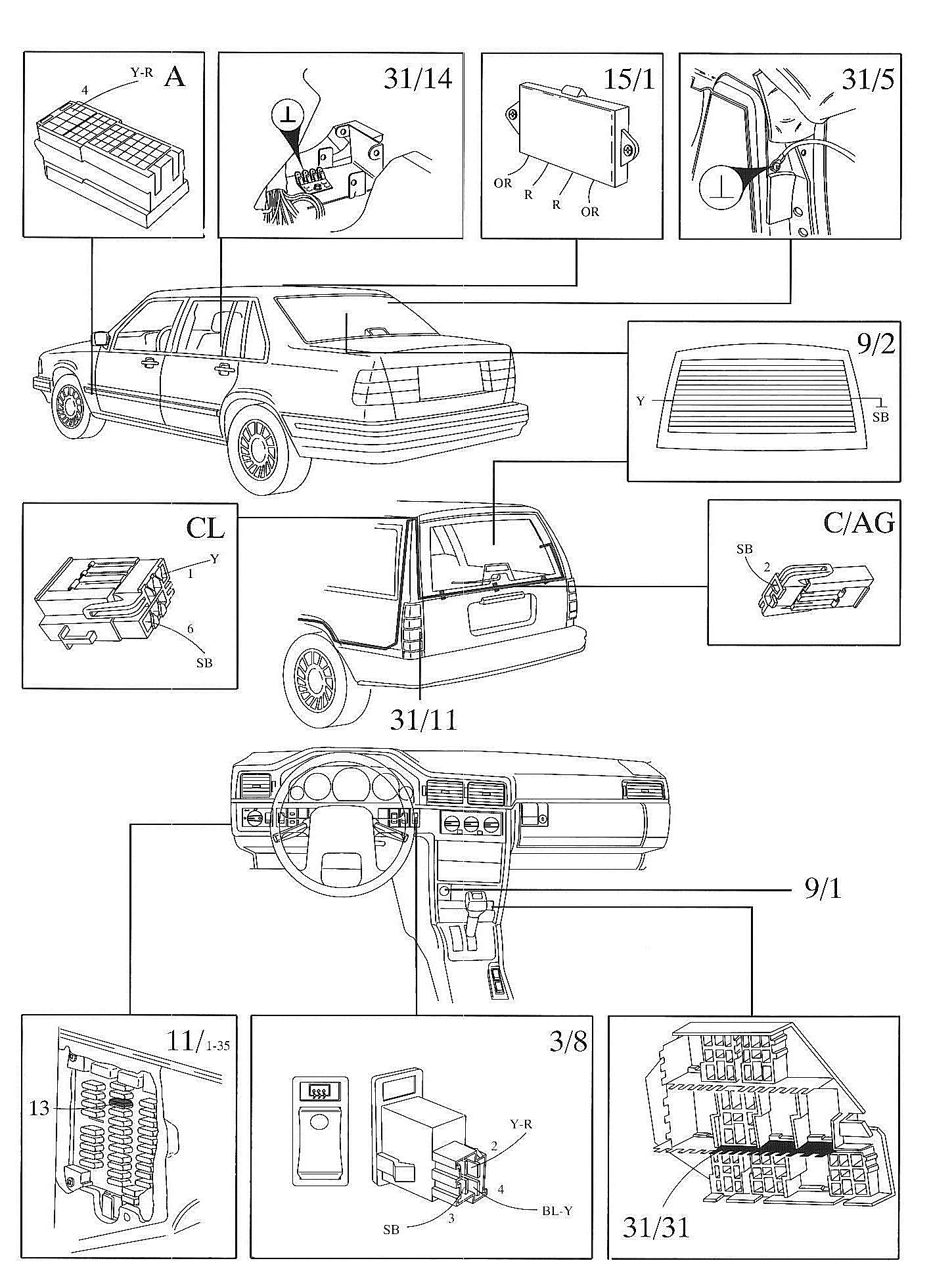

Component / Connector Locations:

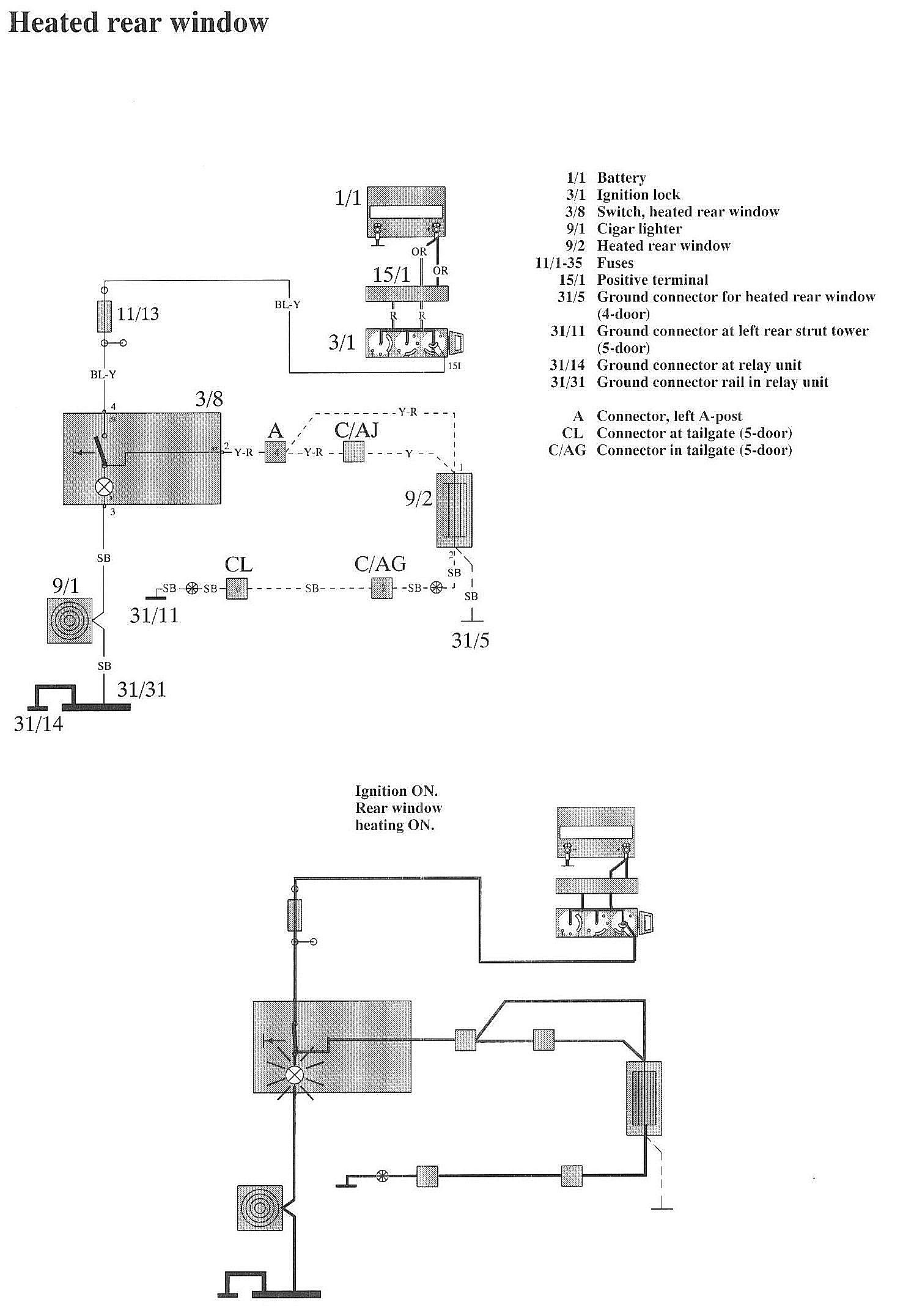

Wiring Diagrams:

LEGEND
1/1 Battery
3/1 Ignition lock
3/8 Switch, heated rear window
9/1 Cigar lighter
9/2 Heated rear window

11/1-35 Fuses
15/1 Positive terminal
31/5 Ground connector for heated rear window (4-door)
31/11 Ground connector at left rear strut tower (5-door)
31/14 Ground connector at relay unit
31/31 Ground connector rail in relay unit
