Engine Mounting - Torque Specifications

NO.
807

GROUP
21

DATE
3/93

Engine mounting specifications

850

THIS BULLETIN SUPERSEDES SB 21-807; DATED 1/93
REFERENCE:
TP 31910/2 (ENGLISH); 06/92; B5204, B5254 ENGINES

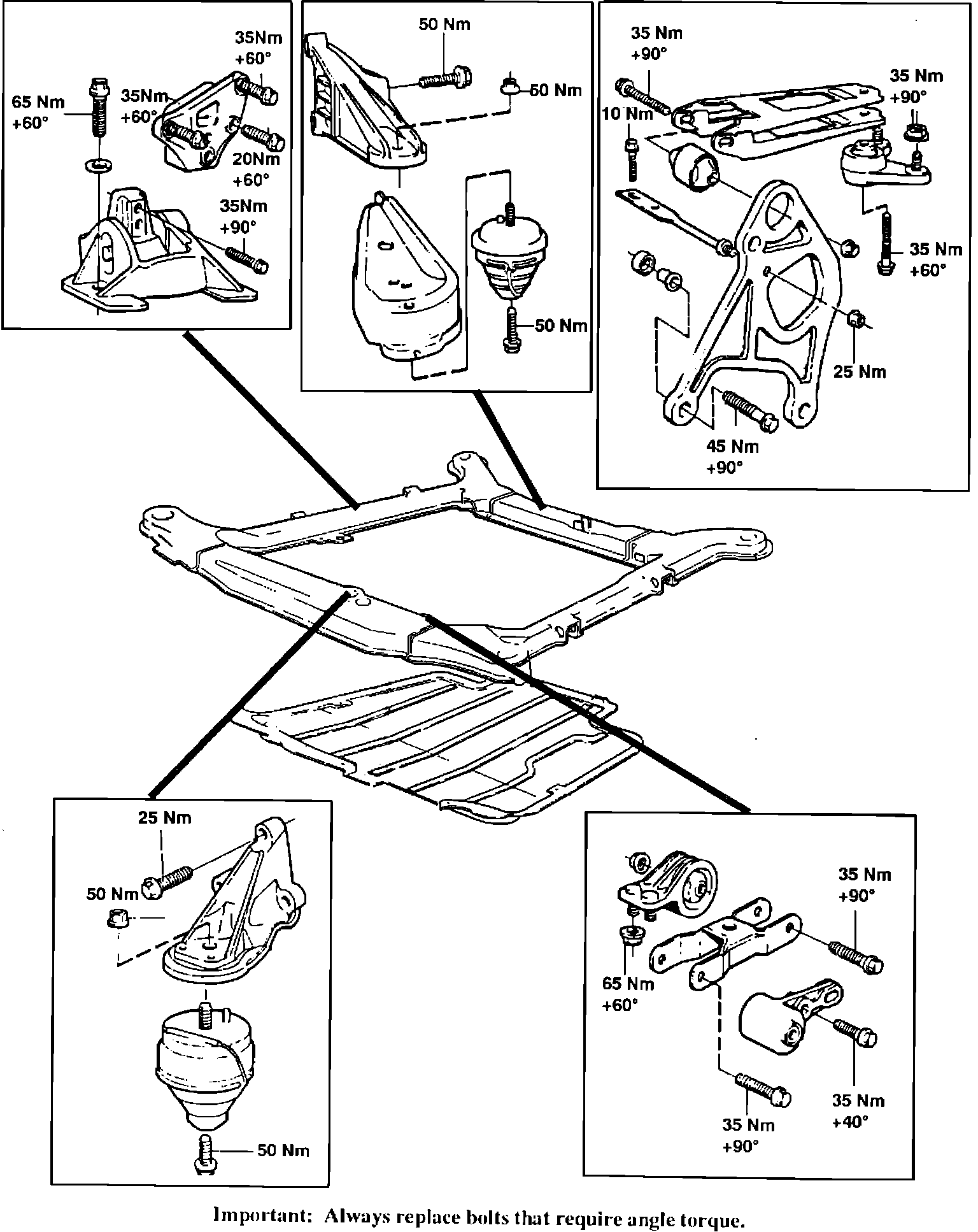

Engine mounting specifications





When replacing engine mounting pads as per TP 31910/2, pages 35-38, Procedures E1-E15, the following torque specifications should be used.

Write "See SB 21-807" on pages 35-38.
