Ignition Coil: Description and Operation

Ignition Coils:

PURPOSE
Separate ignition coils are used for each spark plug to ensure rapid voltage rise and extremely high (40 Kv) ignition voltage.

LOCATION

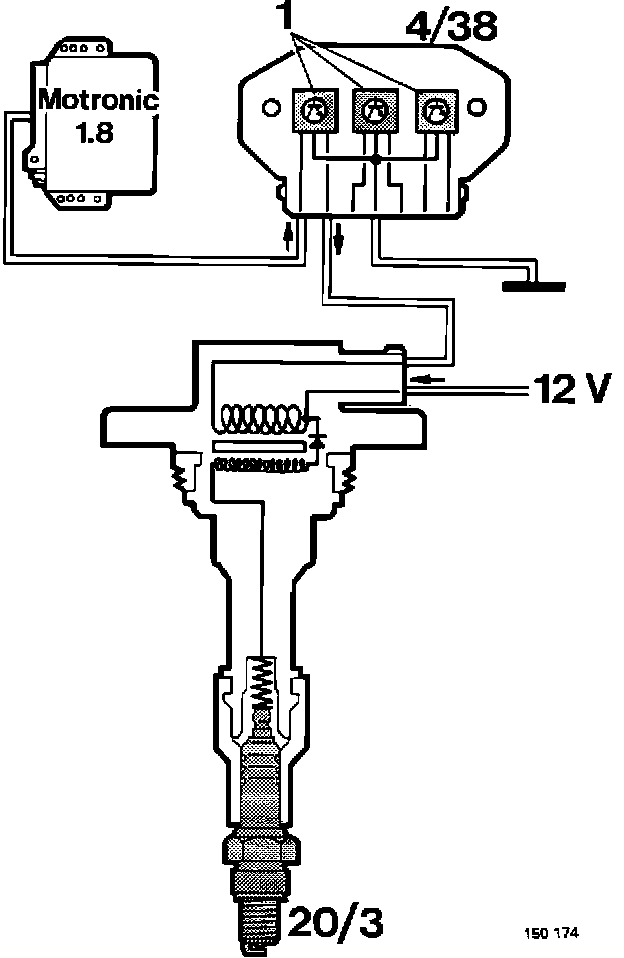

Each coil is mounted directly above the spark plug.
