Home >> Volvo >> 2005 >> S80 L6-2.9L Turbo VIN 91 B6294T >> Repair and Diagnosis >> Diagrams >> Grounds >> 31/46

31/46

31/46:

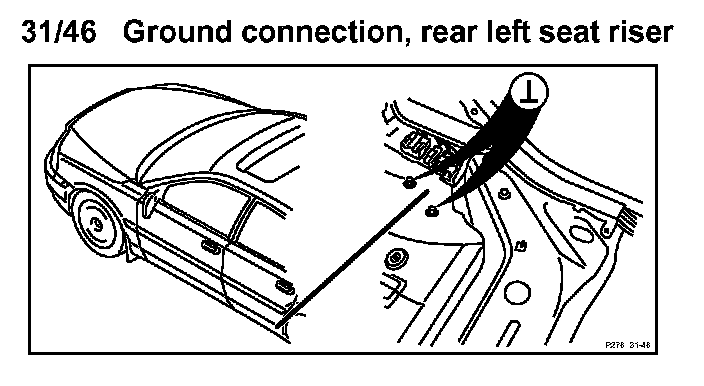

31/46 Ground Connection, Rear Left Seat Riser:
