Fluid Pan: Service and Repair

Cover, control system

Operation number: 43748-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Drain oil. Transaxle Oil

Remove the air cleaner (ACL) housing. Service and Repair




Torque: M8, 24 Nm

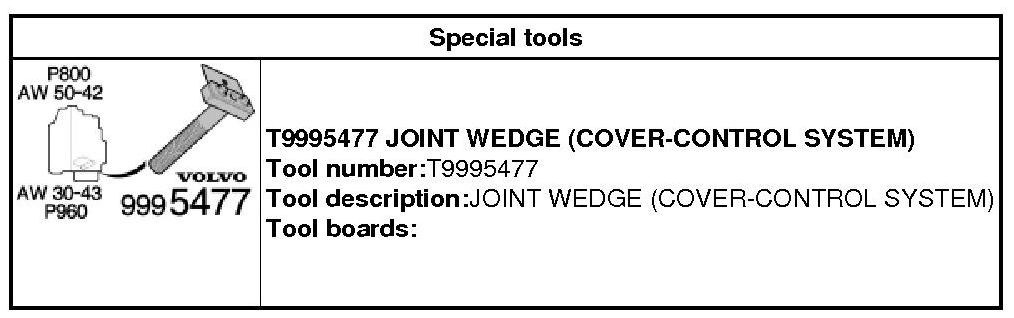

999 5477 JOINT WEDGE 999 5477 Joint Wedge

Installation

Clean the mating surface.

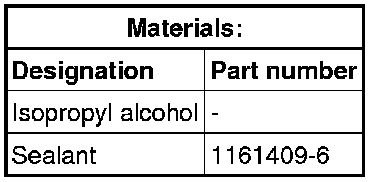

Use: Isopropyl alcohol

Apply sealant.
Use: Sealant, 1161409-6

To install, reverse the removal procedure.
