Starting System

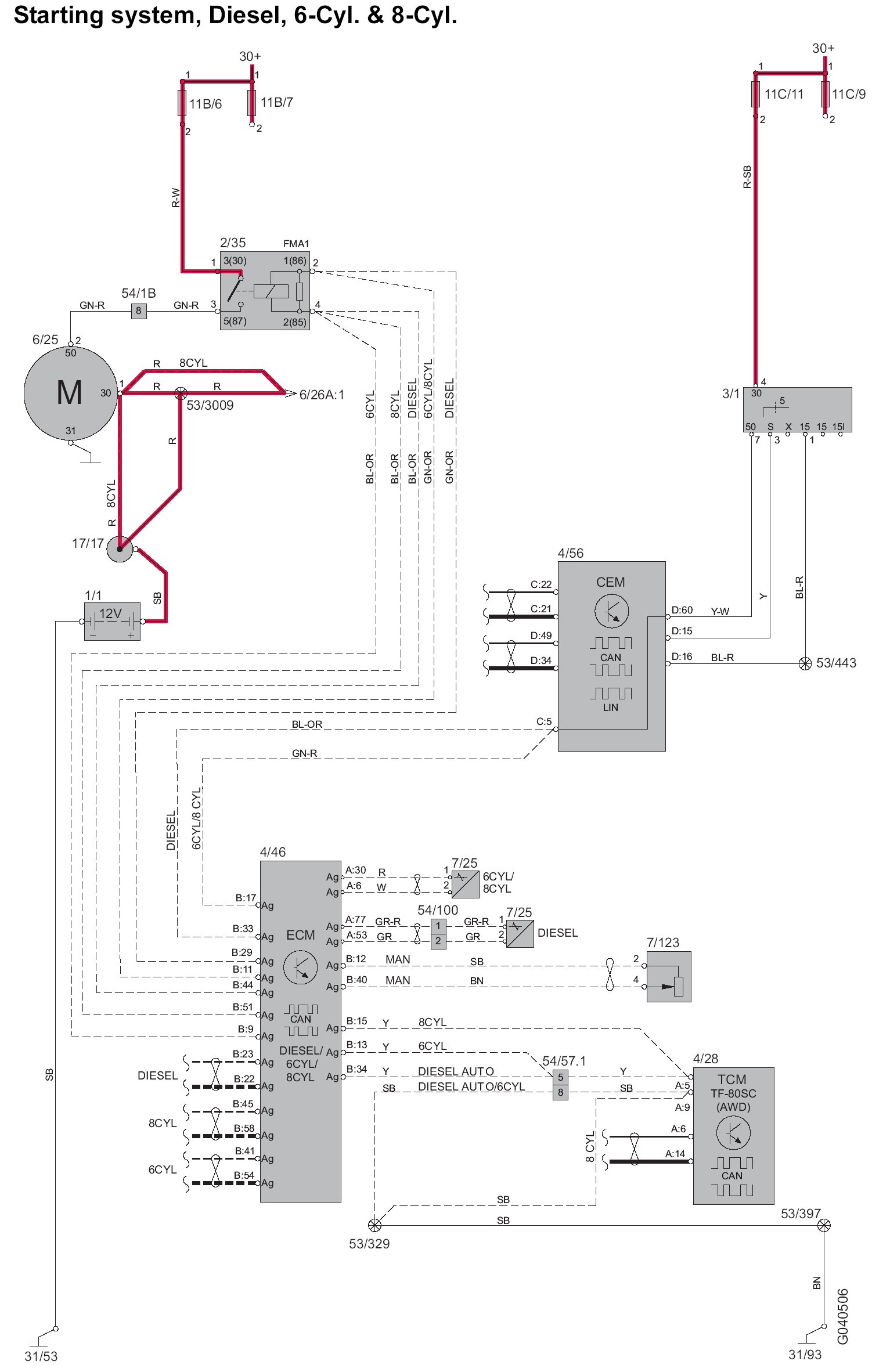

Starting System, Diesel, 6-Cyl. & 8-Cyl.

Starting System:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
