Pinpoint Test 1

Flowchart No.1 Symptom Warning lights do not illuminate with ignition switch at ON (engine stopped)

Possible cause
^ Burnt METER 15A fuse
^ Open or short circuit in wiring harness
^ Poor connection of connector

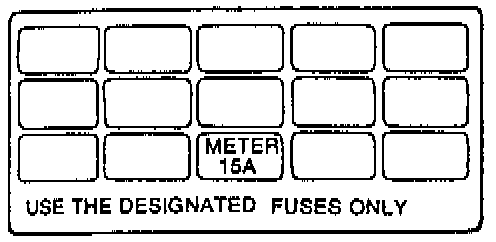

Fuse Location:

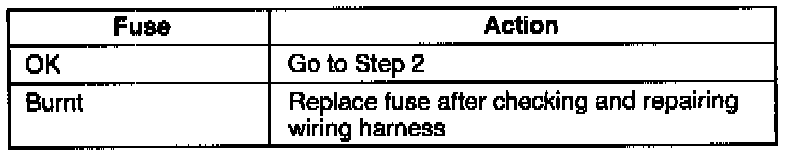

Action Chart:

Step 1
Check the METER 15A fuse in the fuse block.

Step 2
1. Remove the instrument cluster.
2. Turn the ignition switch to ON.

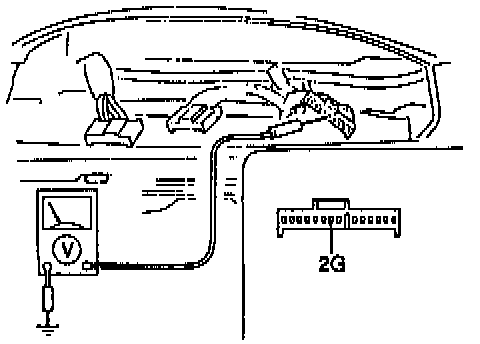

Voltmeter Connection:

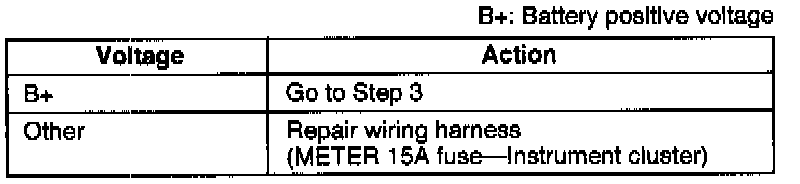

Action Chart:

3. Measure the voltage at terminal 2G (B/Y) of instrument cluster connector.





Step 3

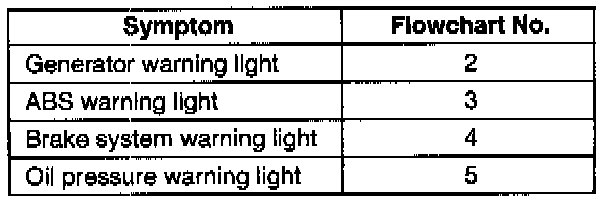

Refer to the flowchart numbers shown.
