Installation

AIR CONDITIONING: BLOWER UNIT:

INSTALLATION

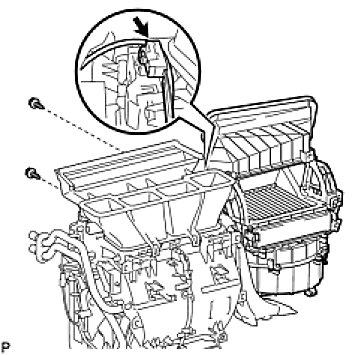

1. INSTALL BLOWER ASSEMBLY (for TMC Made)





(a) Install the blower assembly with the 2 screws.

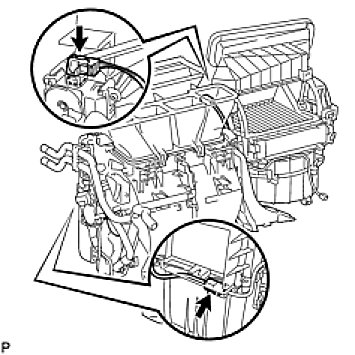

(b) Connect the connector.

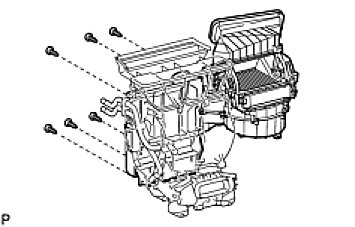

2. INSTALL BLOWER ASSEMBLY (for TMMK Made)





(a) Install the blower assembly with the 6 screws.





(b) Connect the connector.
3. INSTALL COOLER EXPANSION VALVE (for TMMK Made) (Reassembly)

4. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (Installation)

5. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (Installation)

6. INSTALL STEERING COLUMN ASSEMBLY (for TMC Made) (Installation)

7. INSTALL STEERING POST ASSEMBLY (for TMMK Made) (Installation)

8. INSTALL NO. 1 AIR DUCT (Installation)

9. INSTALL REAR NO. 1 AIR DUCT (Installation)

10. INSTALL REAR NO. 2 AIR DUCT (Installation)

11. INSTALL FLOOR CARPET BRACKET RH
12. INSTALL FLOOR CARPET BRACKET LH
13. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System) (Installation)

14. INSTALL NO. 3 INSTRUMENT PANEL STAY (Installation)

15. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMC Made) (Installation)

16. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for TMMK Made) (Installation)

17. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH (Installation)

18. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) (Installation)

19. INSTALL INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY (Installation)

20. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY (Installation)

21. INSTALL FRONT PILLAR GARNISH LH (Installation)

22. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side) (Installation)

23. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY (Installation)

24. INSTALL INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY (Installation)

25. INSTALL FRONT PILLAR GARNISH RH (Installation)

26. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made) (Installation)

27. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made) (Installation)

28. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) (Installation)

29. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) (Installation)

30. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made) (Installation)

31. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made) (Installation)

32. INSTALL CONSOLE BOX CARPET (Installation)

33. INSTALL CONSOLE BOX POCKET (Installation)

34. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/o Navigation System) (Installation)

35. INSTALL NAVIGATION RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY (w/ Navigation System) (Installation)

36. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY (Installation)

37. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) (Installation)

38. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) (Installation)

39. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) (Installation)

40. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) (Installation)

41. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) (Installation)

42. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle) (Installation)

43. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (Installation)

44. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (Installation)

45. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (Installation)

46. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (Installation)

47. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) (Installation)

48. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) (Installation)

49. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY (Installation)

50. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (Installation)

51. INSTALL FRONT DOOR SCUFF PLATE RH (Installation)

52. INSTALL COMBINATION METER ASSEMBLY (for TMC Made) (Installation)

53. INSTALL COMBINATION METER ASSEMBLY (for TMMK Made) (Installation)

54. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL (Installation)

55. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) (Installation)

56. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) (Installation)

57. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY (Installation)

58. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (Installation)

59. ADJUST SPIRAL CABLE SUB-ASSEMBLY (Installation)

60. INSTALL STEERING COLUMN COVER (for TMC Made) (Installation)

61. INSTALL STEERING COLUMN COVER (for TMMK Made) (Installation)

62. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) (Installation)

63. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) (Installation)

64. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (Installation)

65. INSTALL FRONT DOOR SCUFF PLATE LH (Installation)

66. INSTALL STEERING WHEEL ASSEMBLY (Installation)

67. INSTALL STEERING PAD (Installation)

68. INSTALL LOWER NO. 3 STEERING WHEEL COVER (Installation)

69. INSTALL LOWER NO. 2 STEERING WHEEL COVER (Installation)

70. INSTALL HEATER INLET WATER HOSE (Installation)

71. INSTALL HEATER OUTLET WATER HOSE (Installation)

72. INSTALL AIR CONDITIONER TUBE AND ACCESSORY (Installation)

73. INSTALL SUCTION HOSE SUB-ASSEMBLY (Installation)

74. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (Installation)

75. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (Installation)

76. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (Installation)

77. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (Installation)

78. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (Installation)

79. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (Installation)

80. CONNECT NEGATIVE BATTERY TERMINAL
81. INSPECT STEERING PAD (Installation)

82. INSPECT SRS WARNING LIGHT (Installation)

83. ADD ENGINE COOLANT (for 2AZ-FE) (Testing and Inspection)

84. ADD ENGINE COOLANT (for 2GR-FE) (Testing and Inspection)

85. CHECK FOR ENGINE COOLANT LEAKS
86. CHARGE WITH REFRIGERANT (Service and Repair)

87. WARM UP ENGINE (Service and Repair)

88. CHECK FOR REFRIGERANT LEAKS (Service and Repair)
